Article No. 10651
sump unit
for NW 100, with silt bucket made of recycled PP, with ductile iron cover MS 80/8 mm, black, cl. B 125, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

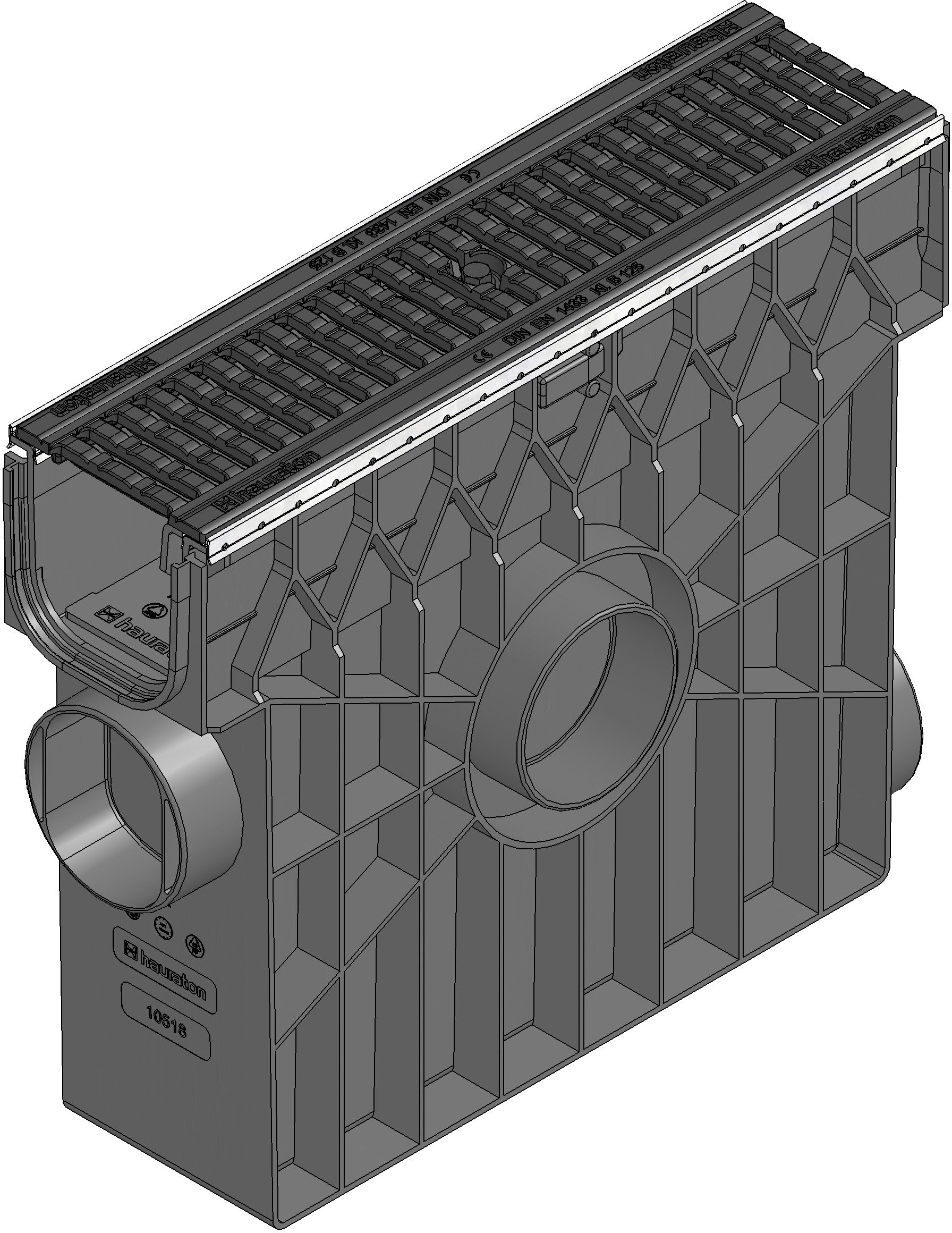

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
10651
Length
500 mm
Width
138 mm
Height
425 mm
Einlegetiefe
6 mm
Weight
6.23 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised, strip galvanized steel
Intake cross-section
320.0 cm²/m
Nominal size
100
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel and ductile iron cover SW 80/8 mm, black, cl. B 125, locked, with silt bucket made of recycled PP, DRIVETEC ME 100, 0.5 m
Product description
DRIVETEC ME 100 - Sump unit made of recycled polypropylene, with edge frames made of galvanised steel, 4-sided preformed pipe connection element (on the front sides and on the sides DN/OD 110), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types DRIVETEC ME 100, with ductile iron cover SW 80/8 mm, made of spheroidal ductile iron EN-GJS, black, with locking, load class A 15 according to EN 1433, LxWxH 500x138x425 mm, item no. 10651
Packaging unit
28
