Article No. 10617
sump unit
for NW 100, for DRIVETEC ST, with silt bucket made of recycled PP, with slotted cover SW 80/9 mm, galvanised, cl. A 15, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

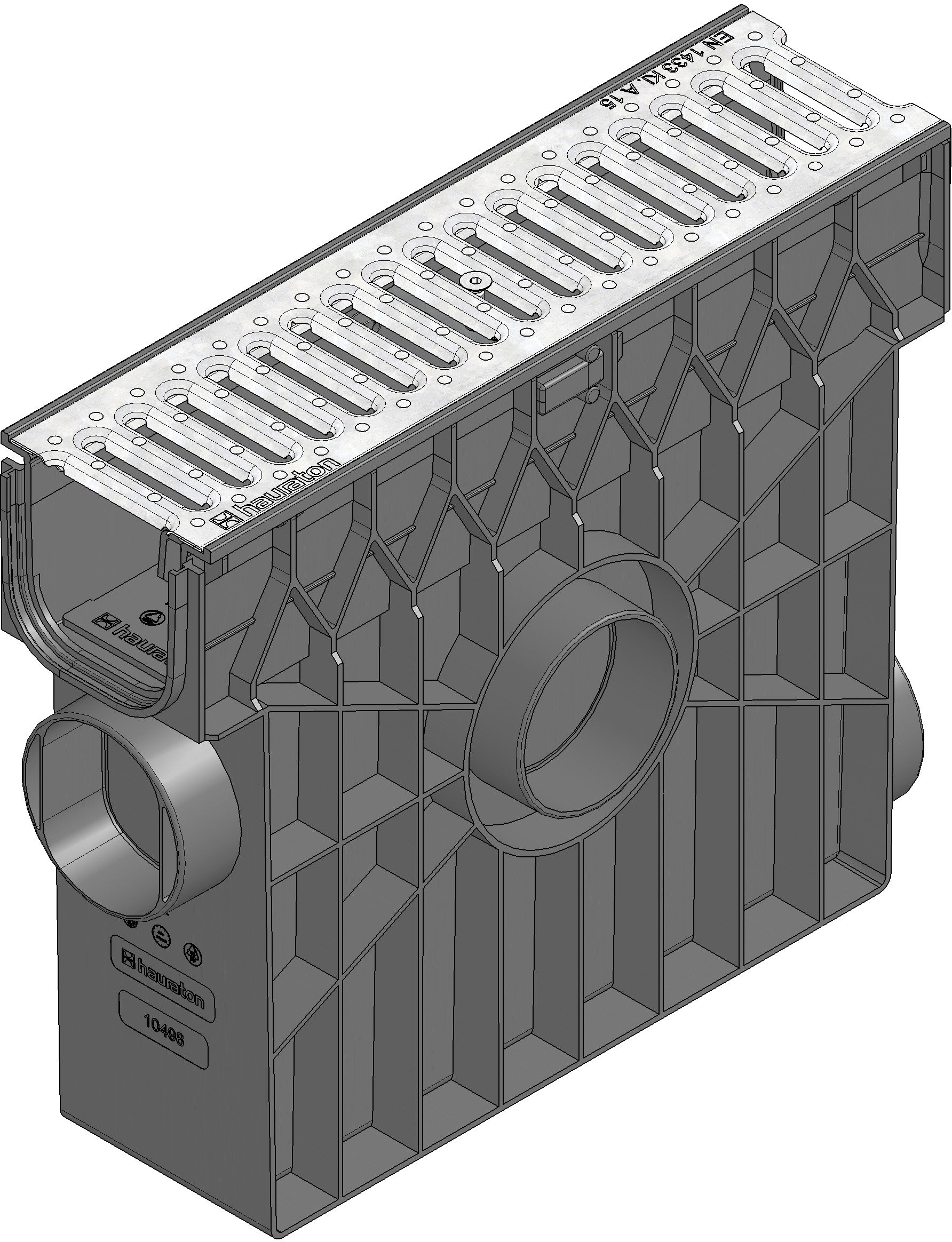

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
10617
Length
500 mm
Width
141 mm
Height
424 mm
Einlegetiefe
3 mm
Weight
4.46 kg
Material
Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel (V2A), strip galvanized steel
Intake cross-section
259.0 cm²/m
Nominal size
100
Material cover
strip galvanized steel
Sales text
Sump unit with slotted cover SW 80/9 mm, galvanised, cl. A 15, locked, with silt bucket made of recycled PP, DRIVETEC ST 100, 0.5 m
Product description
DRIVETEC ST 100 - Sump unit made of recycled polypropylene, 4-sided preformed pipe connection element (on the front sides and on the sides DN/OD 110), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types DRIVETEC ST 100, with slotted cover SW 80/9 mm, made of galvanised steel, overlying, with locking, load class A 15 according to EN 1433, LxWxH 500x141x424 mm, item no. 10617
Packaging unit
28
