Article No. 69014
STEELFIX REGULAR 255
Mesh cover MS 30/10 mm, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

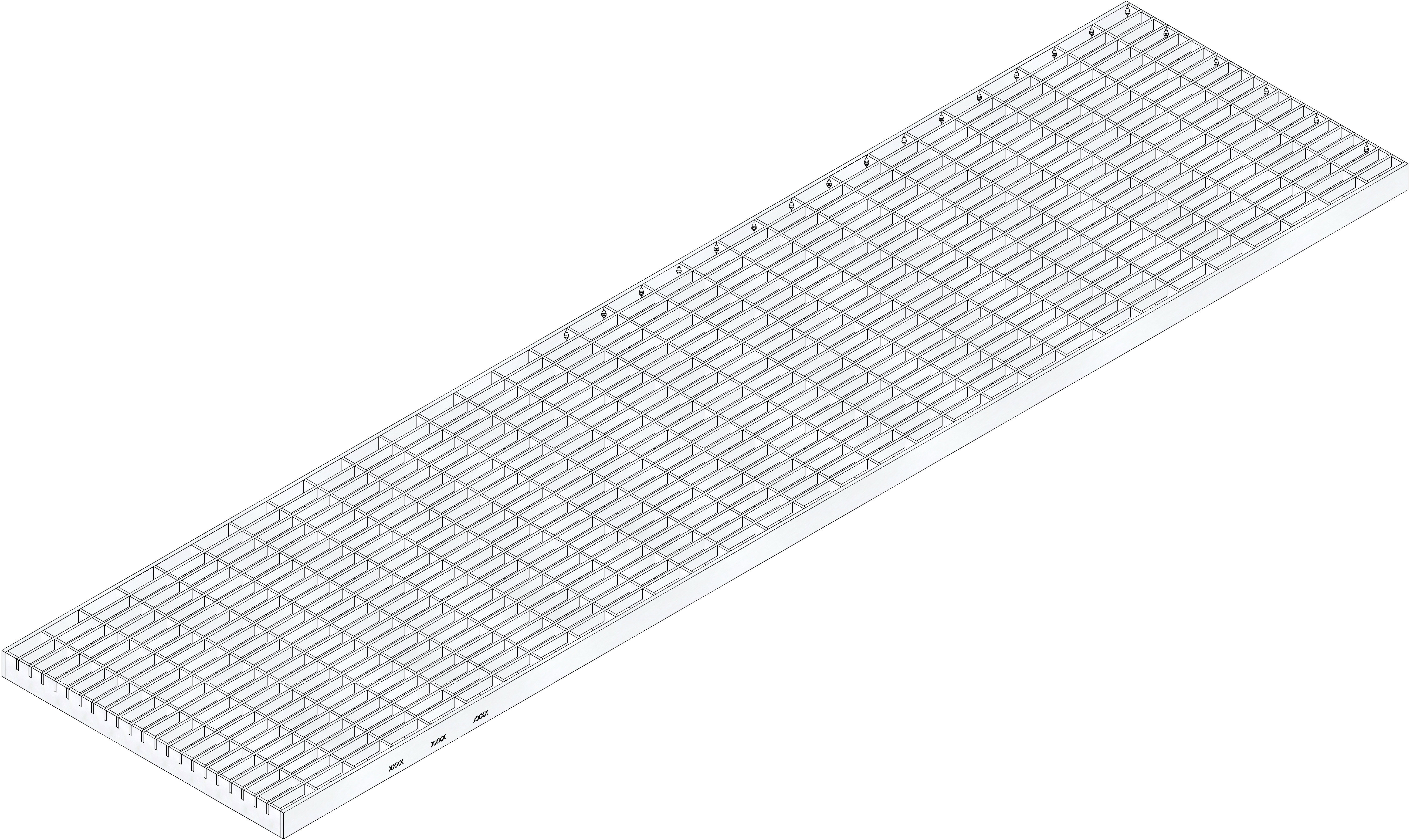

Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
69014
Length
1000 mm
Width
250 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
5.62 kg
Material
Stainless steel 1.4301
Intake cross-section
2020.0 cm²/m
Nominal size
255
Inlet opening
10
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Sales text
Mesh cover MS 30/10 mm, stainless steel, cl. A 15, 2-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 255, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 255 -Mesh cover MS 30/10 mm, made of stainless steel CNS 1.4301, load class A 15, 2-fold bolting possibility, installation length 1000 mm, item no. 69014
Packaging unit
360
