Article No. 10375
STEELFIX REGULAR 255
Longitudinal cover Filigree, bar distance 8 mm, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

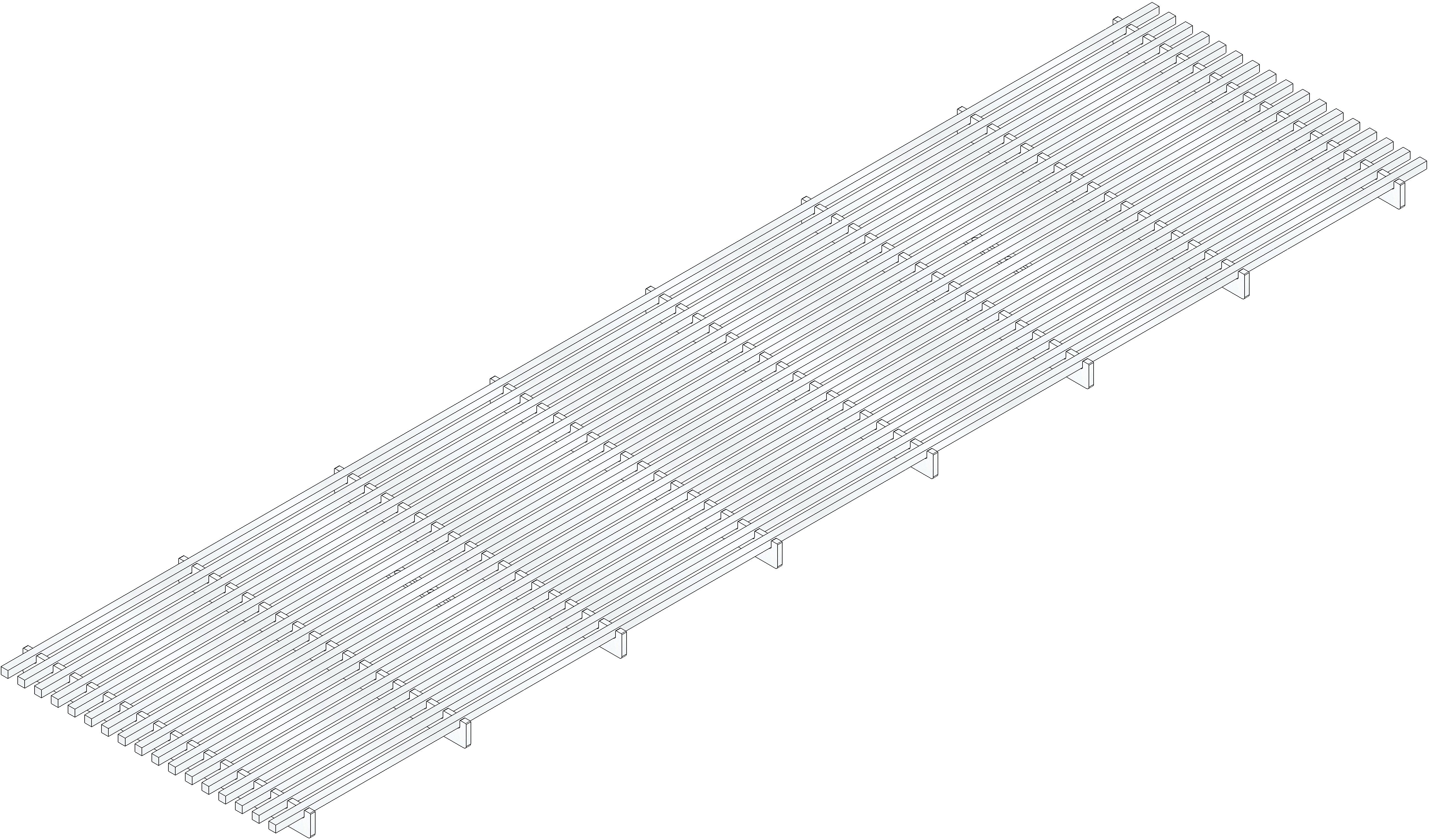

Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10375
Length
1000 mm
Width
249 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
5.80 kg
Material
Stainless steel 1.4301
Intake cross-section
1410.0 cm²/m
Nominal size
255
Inlet opening
0
Fixing type
Loose blatant, Locking handle
Material cover
Stainless steel 1.4301
Sales text
Longitudinal cover Filigree bar distance 8 mm, stainless steel, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 255, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 255 -Longitudinal cover Filigree, bar distance 8 mm, made of stainless steel CNS 1.4301, load class A 15, installation length 1000 mm, item no. 10375
Packaging unit
-
