Article No. 69069
STEELFIX REGULAR 255
FIBRETEC Design slotted cover, SW 200/10 mm, in the colour black, screwable from type 75, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

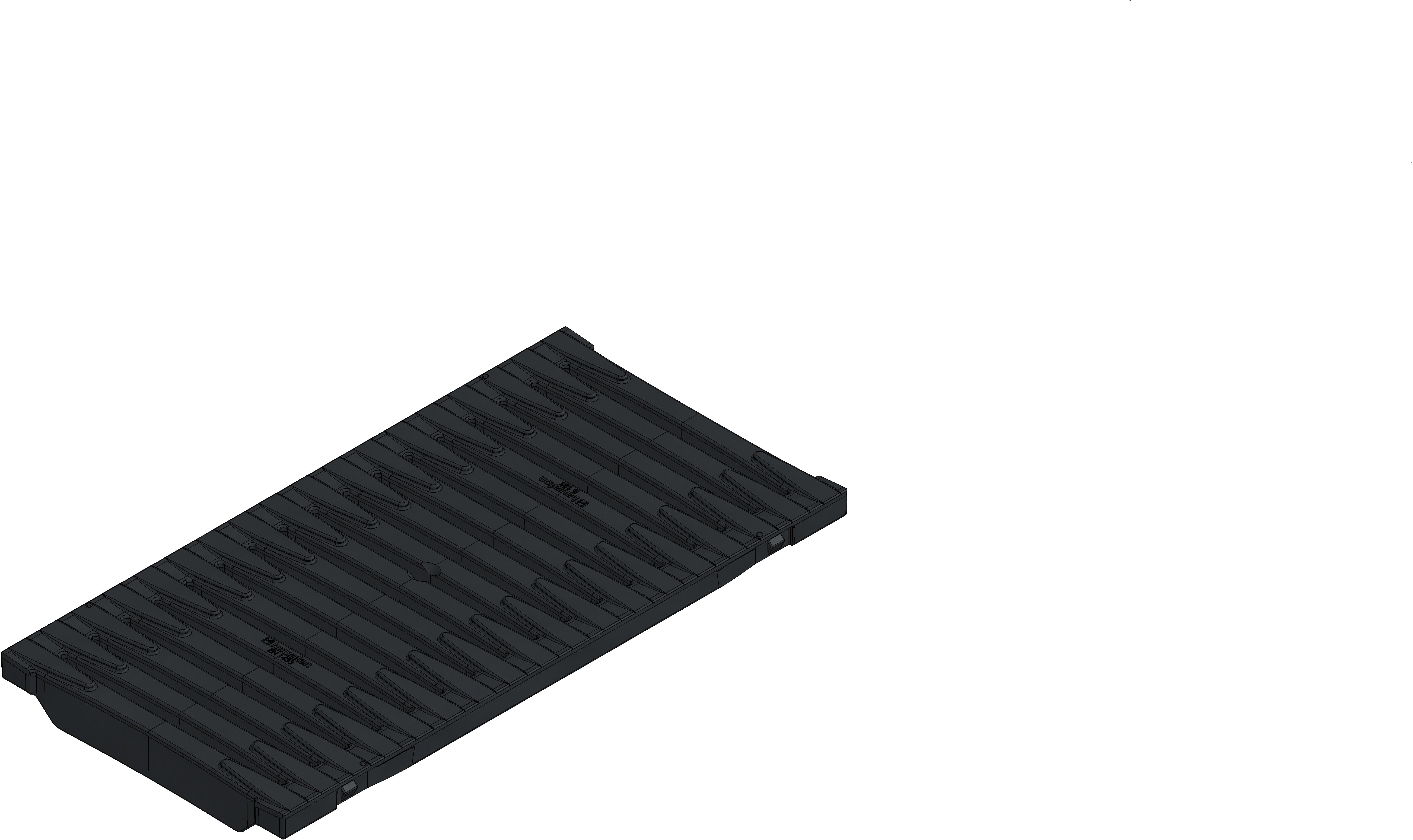

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
69069
Length
500 mm
Width
249 mm
Height
40 mm
Einlegetiefe
20 mm
Weight
2.11 kg
Material
reinforced Polyamide
Intake cross-section
656.0 cm²/m
Nominal size
255
Inlet opening
10
Fixing type
Locking handle
Material cover
reinforced Polyamide
Regulations
DIN 51130, AS 4586, EN 16165
Sales text
FIBRETEC Design slotted cover SW 198/11 mm, black, pedestrian and wheelchair-accessible, screwable from type 75, DACHFIX STEEL/ STEELFIX REGULAR 255, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 255 -FIBRETEC design slotted cover SW 200/10 mm, made of fibre-reinforced polyamide, black, pedestrian and wheelchair-accessible, screwable from type 75, installation length 500 mm, item no. 69069
Packaging unit
84
