Article No. 66100

STEELFIX REGULAR 205, height 100 mm

Type 100, drain element, stainless steel, 1.0 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

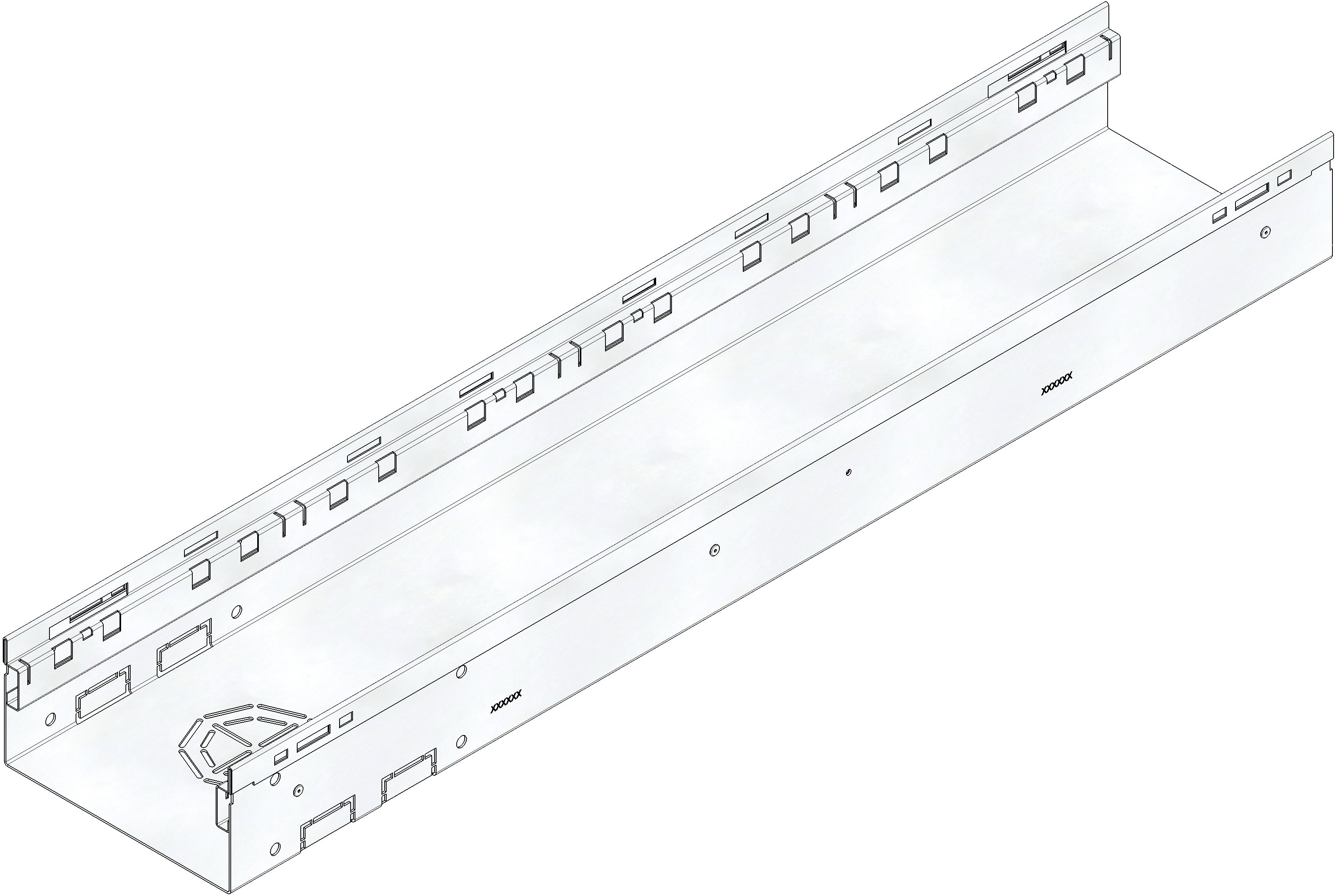

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66100
Length
1000 mm
Width
205 mm
Height
100 mm
Weight
6.12 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
205
Internal channel cross-section
151 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
STEELFIX REGULAR 205 Channel body type 100 -drain element, stainless steel, installation height 100 mm, 1 m
Product description
STEELFIX REGULAR 205 type 100 - Channel body, made of stainless steel CNS 1.4301, pedestrian and wheelchair-accessible, cover support tilted inwards, channel base and sides closed, but with perforation in the channel base as connection possibility for pipe outlet connection DN/OD 75 or DN/OD 100 and connection possibility with STEELFIX REGULAR sump unit, LxWxH 1000x205x100 mm, item no. 66100
Packaging unit
-
