Article No. 69011
STEELFIX REGULAR 135
Mesh cover MS 30/10 mm, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

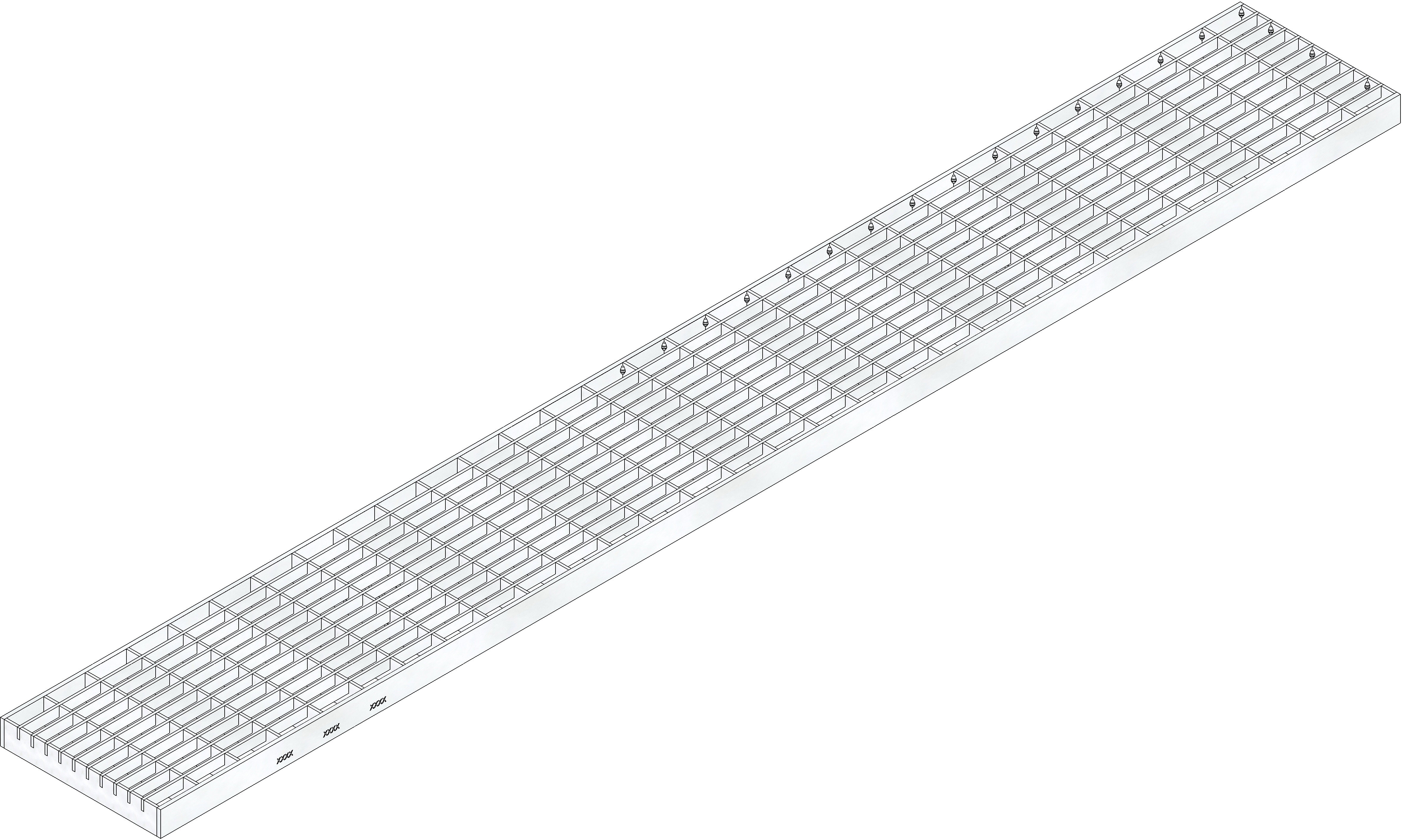

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
69011
Length
1000 mm
Width
129 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
2.33 kg
Material
Stainless steel 1.4301
Intake cross-section
1055.0 cm²/m
Nominal size
135
Inlet opening
10
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Sales text
Mesh cover MS 30/10 mm, stainless steel, cl. A 15, 2-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 135, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 135 -Mesh cover MS 30/10 mm, made of stainless steel CNS 1.4301, load class A 15, 2-fold bolting possibility, installation length 1000 mm, item no. 69011
Packaging unit
252
