Article No. 33440

STEELFIX Drain box, base

Sump unit 30 x 30 mm for type 100/150, stainless steel

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

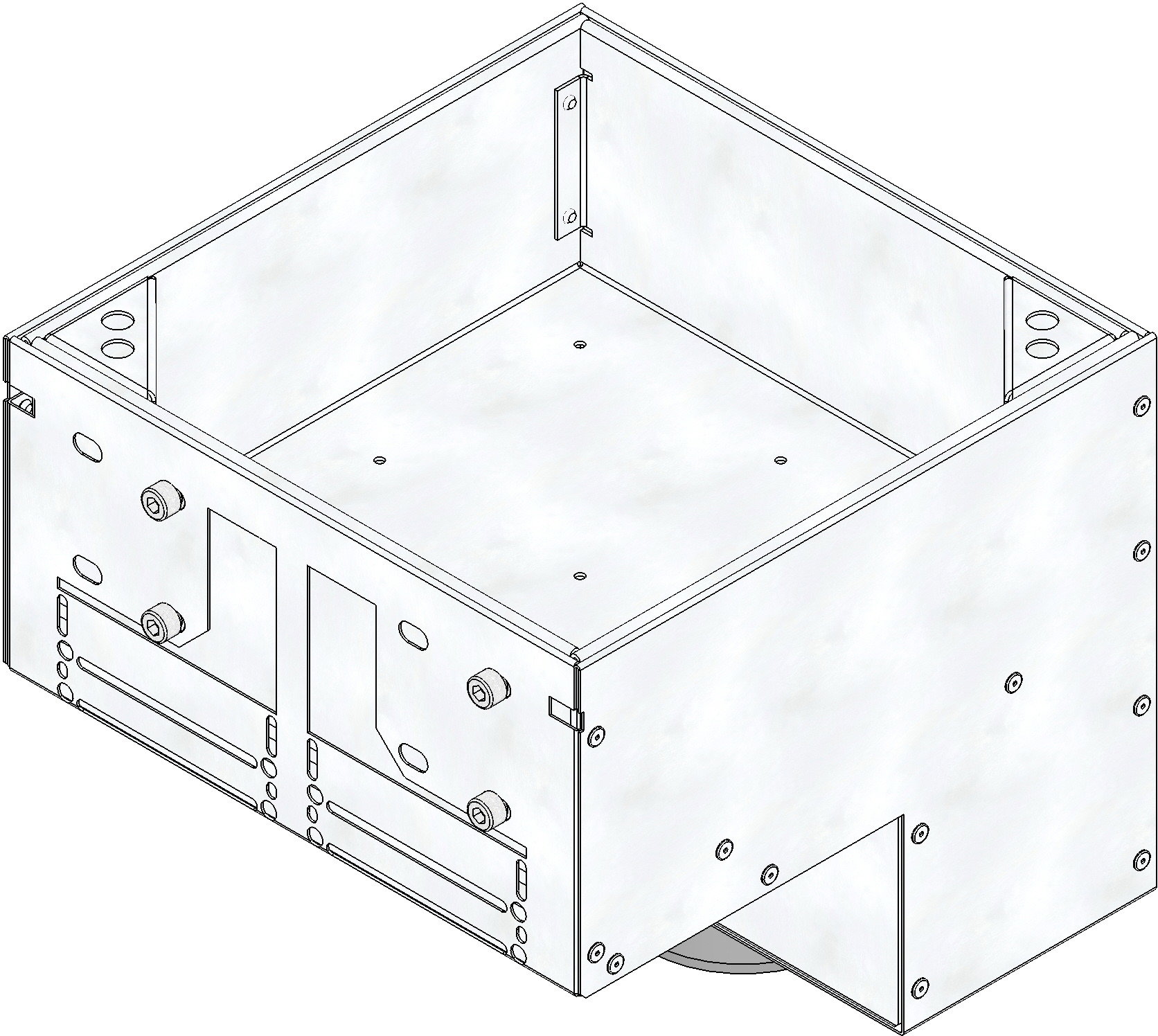

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
33440
Length
300 mm
Width
300 mm
Height
250 mm
Weight
7.35 kg
Material
PVC-U, Stainless steel 1.4301
Nominal size
115, 135, 155, 205, 255
Sales text
DACHFIX STEEL Sump unit 300 type 100/150, stainless steel, with PVC-screw socket DN/OD 100, grey and blind cover, stainless steel, with paveable inner pan, for DACHFIX STEEL type 100/150
Product description
DACHFIX STEEL Sump unit 300 type 100/150, with paveable inner pan as access box, height 120 mm, with PVC-U screw socket DN/OD 100, grey and blind cover, made of stainless steel, for DACHFIX STEEL type 100 and 150, made of stainless steel CNS 1.4301, tilted and riveted, overhanging construction, in accordance to load class A 15 pedestrian and wheelchair-accessible, with internal support flanges on all sides as cover support, easy mountable to channel run, connection vertically as well as horizontally possible with PVC-U screw socket DN/OD 100, LxWxH 300x300x250 mm, item no. 33440
