Article No. 7535
SPORTFIX STANDARD 100, accessories
for NW 100, with silt bucket made of recycled PP, with slotted cover SW 75/9 mm, galvanised, trafficable, locked, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

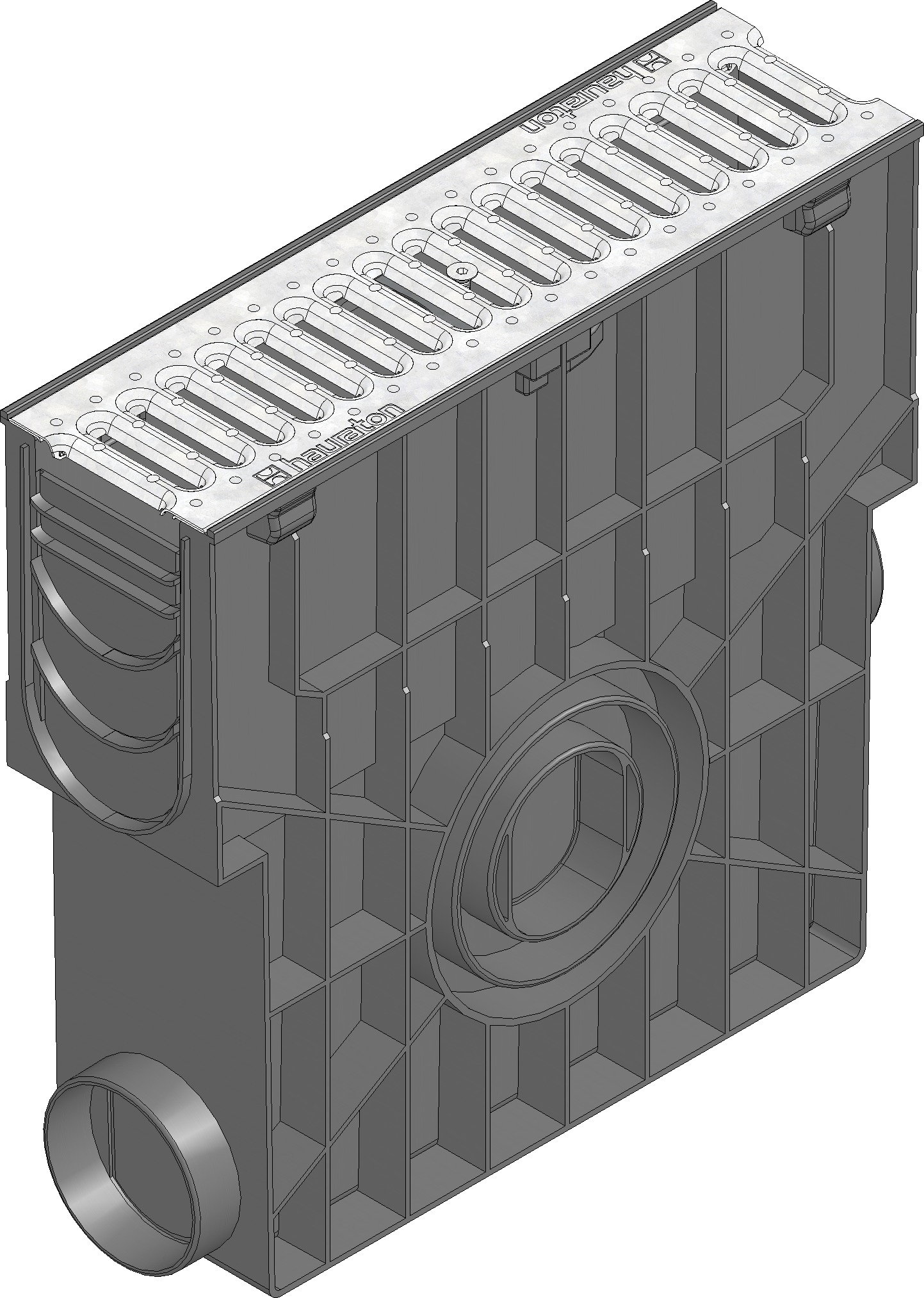

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
7535
Length
500 mm
Width
150 mm
Height
488 mm
Einlegetiefe
3 mm
Weight
5.20 kg
Material
Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
266.0 cm²/m
Nominal size
100
Material cover
strip galvanized steel
Regulations
EN 1433, EN 1433 + IAKS, DIN 19580
Sales text
Sump unit with slotted cover SW 75/9 mm, galvanised, trafficable, locked, with silt bucket made of recycled PP, SPORTFIX STANDARD 100, 0.5 m
Product description
SPORTFIX STANDARD 100 - Sump unit, made of recycled polypropylene, according to DIN 19580/EN 1433, 4-sided preformed pipe connection element (on the front side DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled popypropylene, suitable for both-sided connection of channel types SPORTFIX STANDARD 100, with slotted cover SW 75/9 mm, made of galvanised steel , trafficable, overlying, with locking, LxWxH 500x150x488 mm, item no. 7535
Packaging unit
28
