Article No. 32732
SLOTTED COVERS 150, neck height 160 mm, class C 250
Access cover SW 12 mm, stainless steel, asymmetric, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

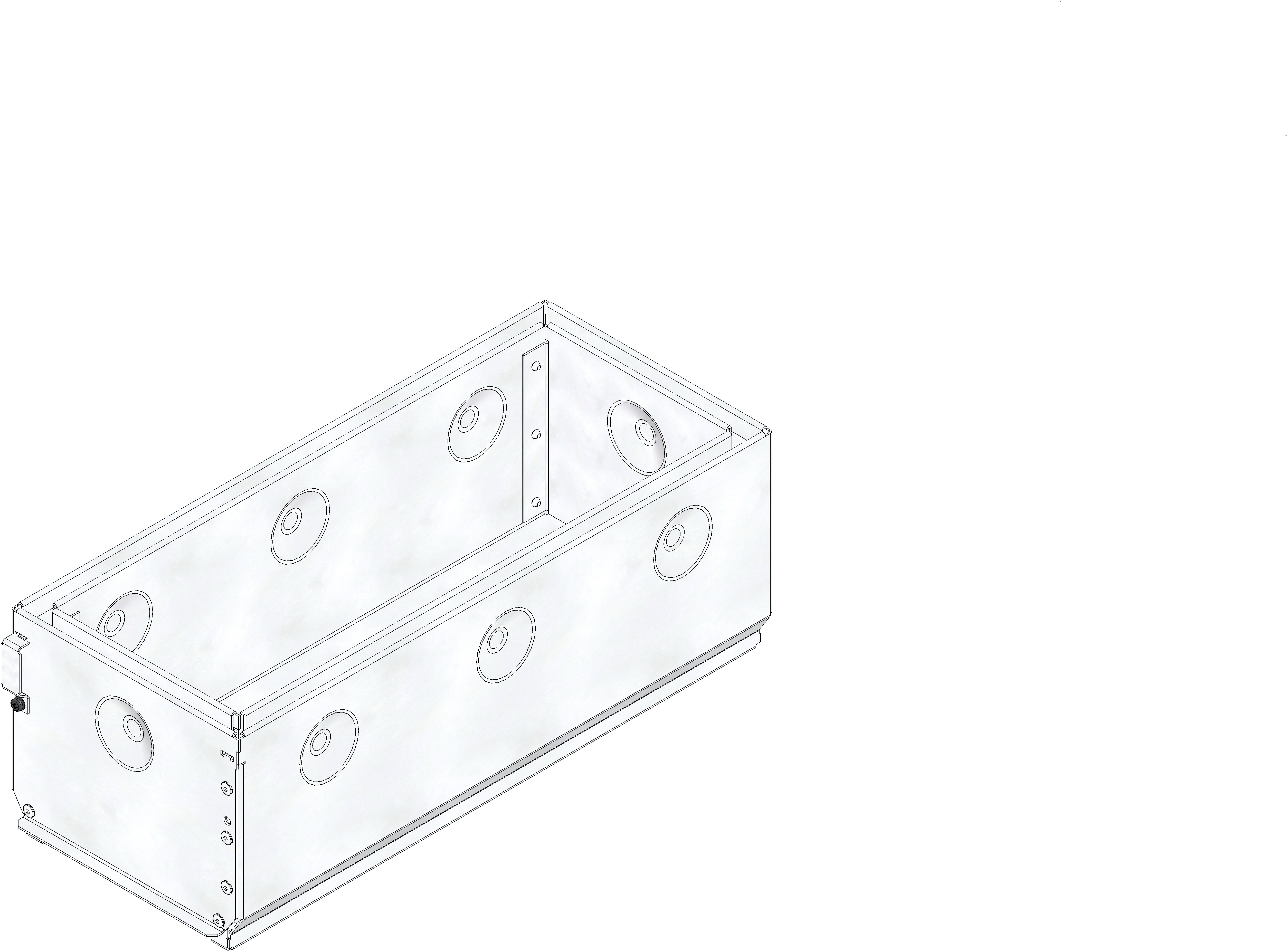

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32732
Length
500 mm
Width
213 mm
Height
181 mm
Einlegetiefe
181 mm
Weight
7.79 kg
Material
Stainless steel 1.4301
Intake cross-section
322.0 cm²/m
Nominal size
150
Inlet opening
12
Material cover
Stainless steel 1.4301
Regulations
in accordance with EN 1433
Sales text
Access cover SW 12 mm, neck height 160 mm, stainless steel, asymmetric, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150 -Access cover for slotted cover SW 12 mm, neck height 160 mm, asymmetric, stainless steel CNS 1.4301, load class A 15 - C 250 according to EN 1433, length 500 mm, item no. 32732
Packaging unit
40
Declaration of Performance
