Article No. 32308
SLOTTED COVERS 100, neck height 200 mm, class D 400
Access cover SW 14 mm, stainless steel, asymmetric, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

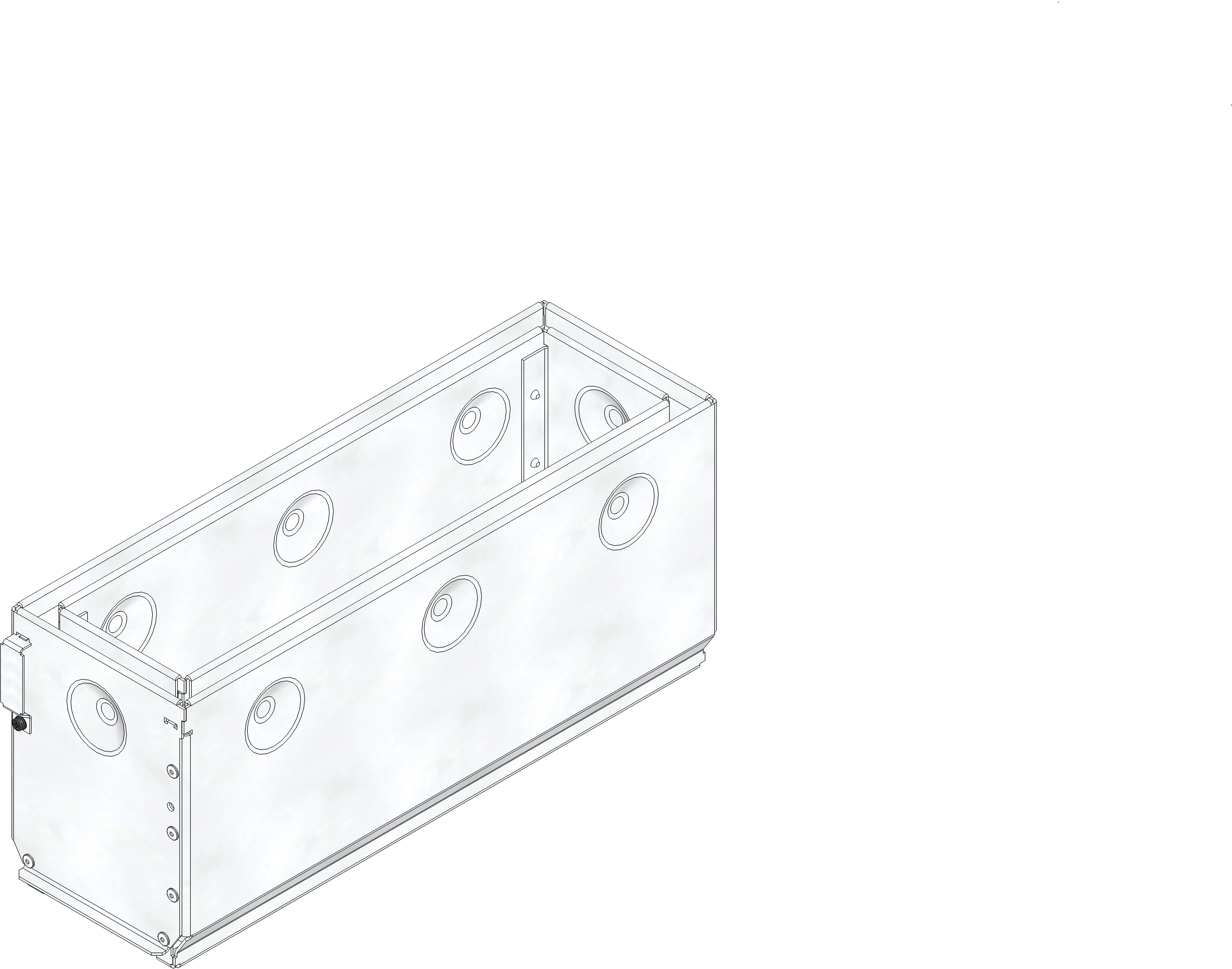

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32308
Length
500 mm
Width
163 mm
Height
229 mm
Einlegetiefe
222 mm
Weight
10.29 kg
Material
Stainless steel 1.4301
Intake cross-section
342.0 cm²/m
Nominal size
100
Inlet opening
14
Material cover
Stainless steel 1.4301
Regulations
in accordance with EN 1433
Sales text
Access cover SW 14 mm, neck height 200 mm, stainless steel, asymmetric, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Access cover for slotted cover SW 14 mm, neck height 200 mm, asymmetric, stainless steel CNS 1.4301, load class A 15 - D 400 according to EN 1433, length 500 mm, item no. 32308
Packaging unit
14
Declaration of Performance
