Article No. 32284
SLOTTED COVERS 100, neck height 105 mm, class C 250
asymmetric, duo slot, SW 2x 6 mm, stainless steel, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

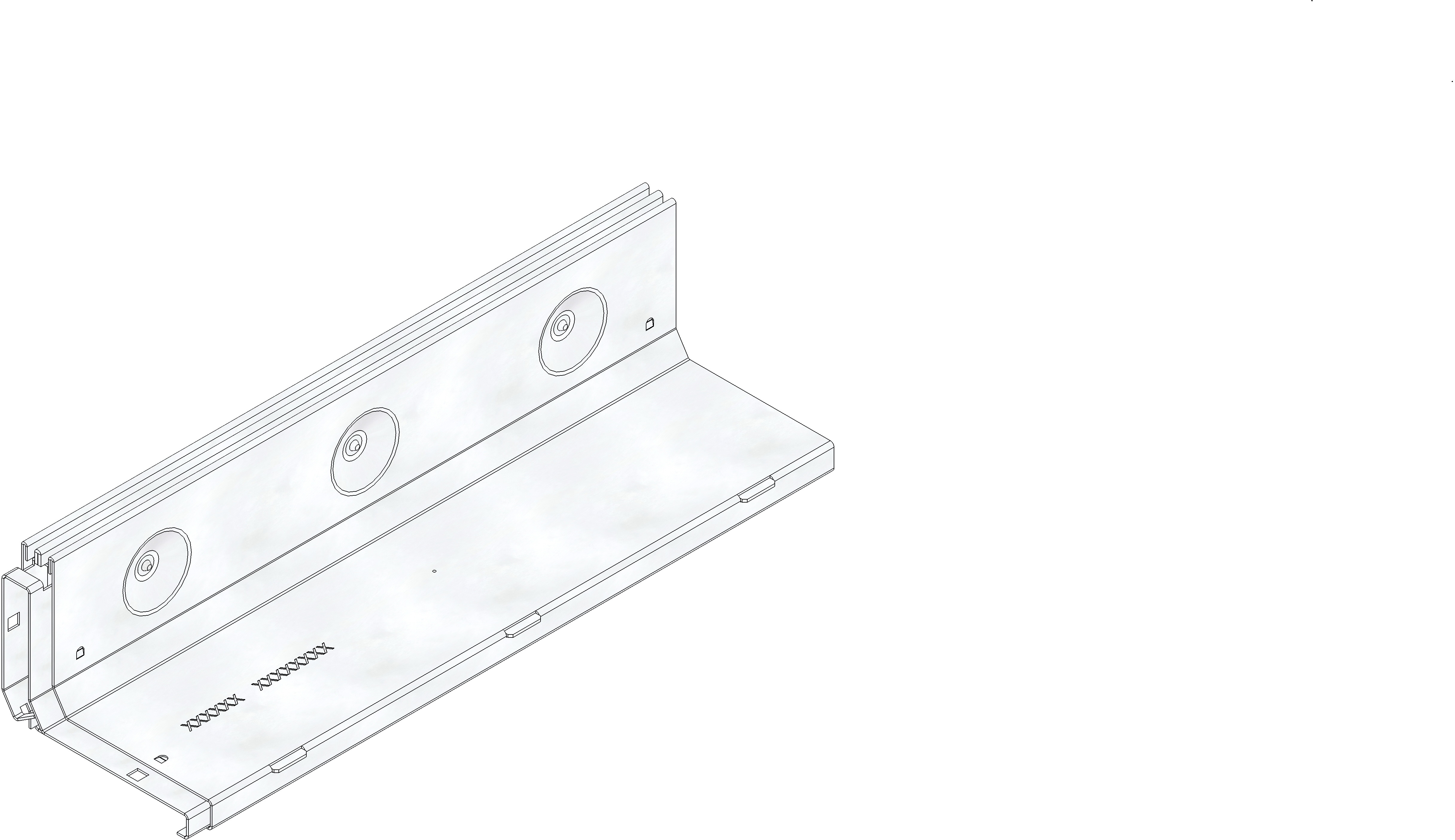

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32284
Length
500 mm
Width
156 mm
Height
134 mm
Einlegetiefe
126 mm
Weight
4.24 kg
Material
Stainless steel 1.4301
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
6
Material cover
Stainless steel 1.4301
Regulations
EN 1433
Sales text
Duo slotted cover SW 2x6 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connector, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Duo slotted cover SW 2x6 mm, neck height 105 mm, asymmetric, stainless steel CNS 1.4301, with integrated full-surface connector, load class A 15 - C 250 according to EN 1433, length 500 mm, item no. 32284
Packaging unit
160
Declaration of Performance
