Article No. 32746
SLOTTED COVERS 100, neck height 105 mm, class C 250
Access cover SW 2 x 6 mm, galvanised, asymmetric, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

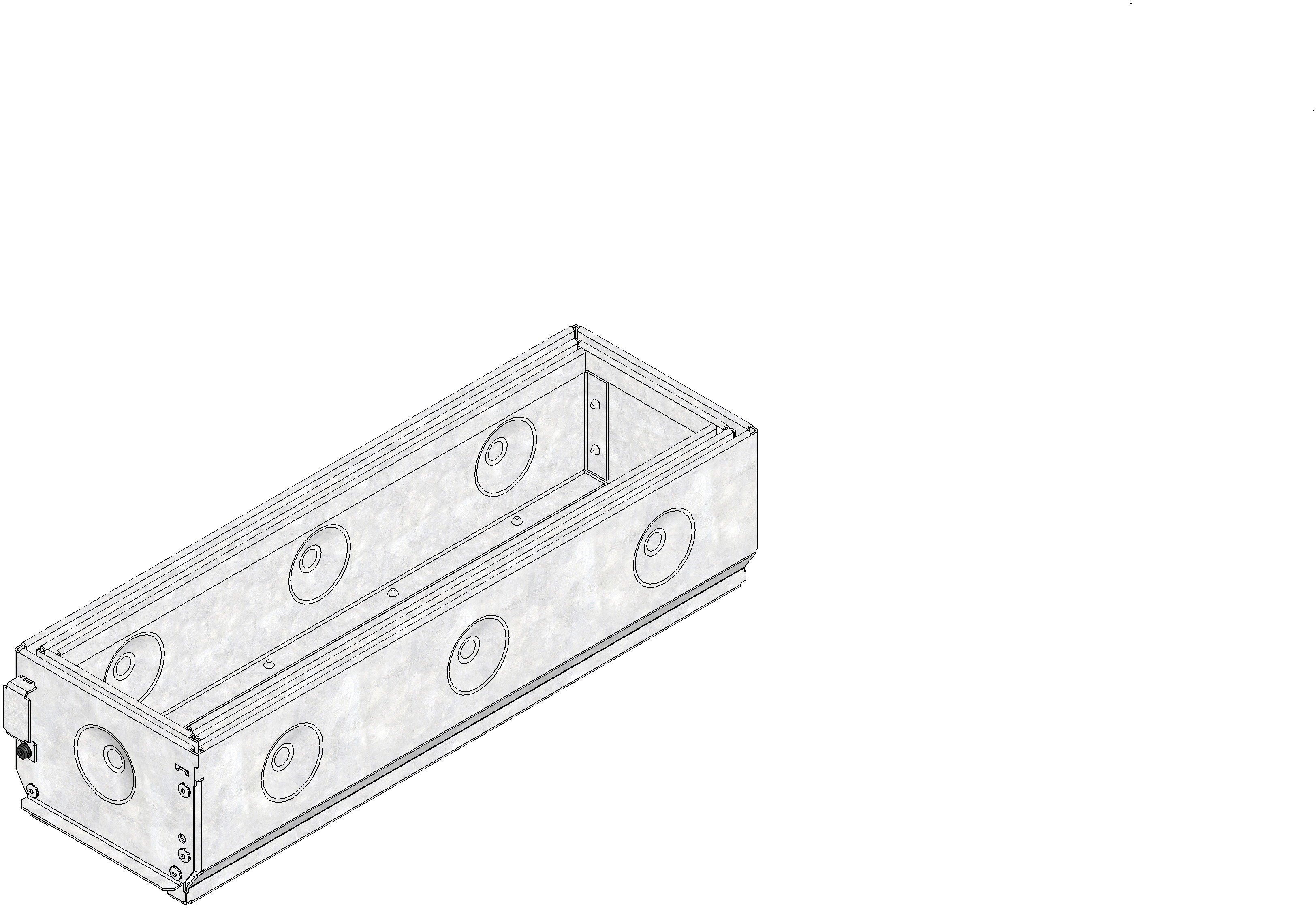

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32746
Length
500 mm
Width
163 mm
Height
125 mm
Einlegetiefe
125 mm
Weight
6.71 kg
Material
strip galvanized steel
Intake cross-section
264.0 cm²/m
Nominal size
100
Inlet opening
6
Material cover
strip galvanized steel
Regulations
in accordance with EN 1433
Sales text
Access cover SW 2x6 mm, neck height 105 mm, galvanised, asymmetric, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Access cover for duo slotted cover SW 2x6 mm, neck height 105 mm, galvanised, asymmetric, load class A 15 - C 250 according to EN 1433, length 500 mm, item no. 32746
Packaging unit
84
Declaration of Performance
