Article No. 33065
SLOTTED COVERS 100, neck height 105 mm, class A 15
Asymmetrical SW 10 mm, with integrated access box left, stainless steel 1.4404, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

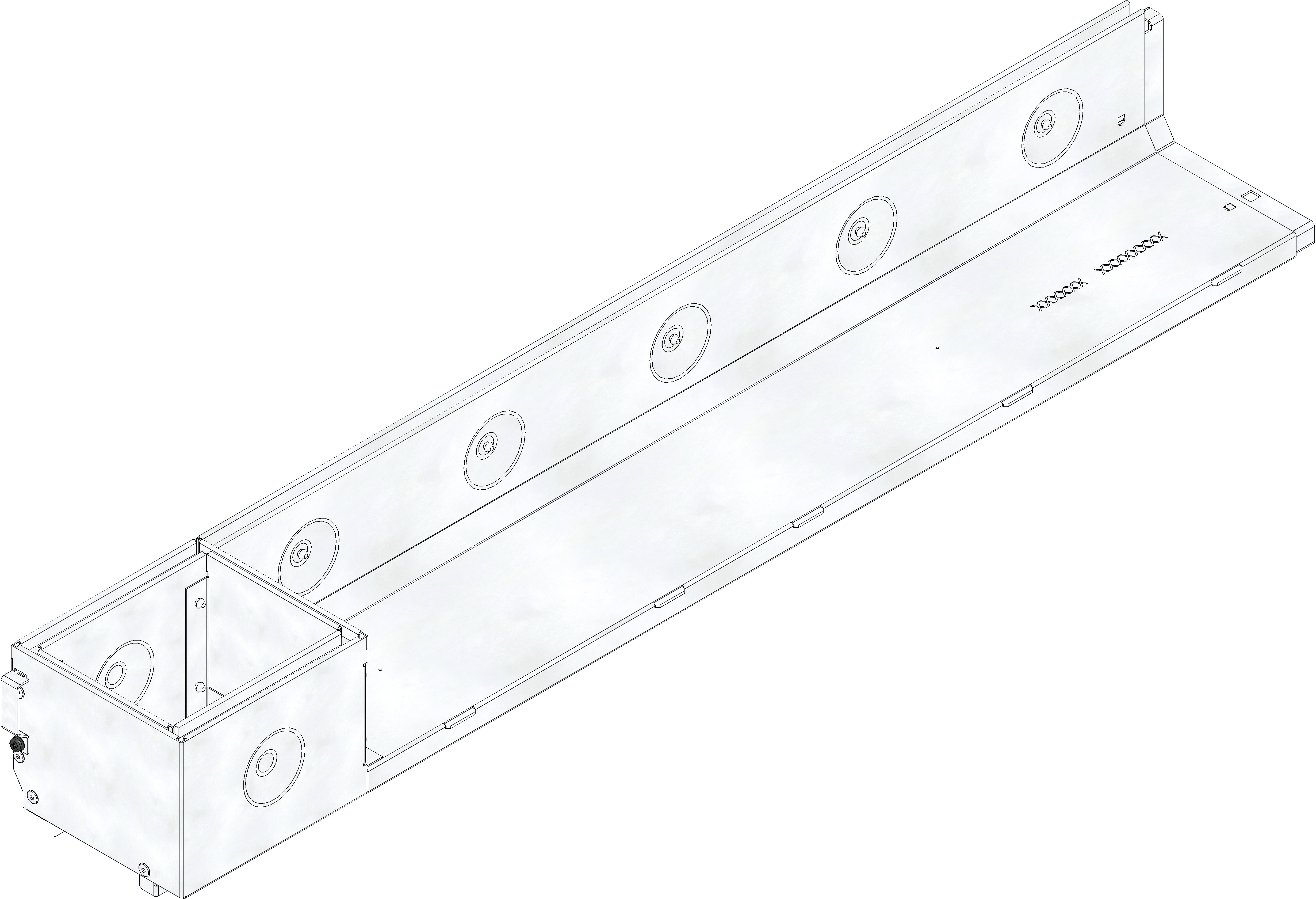

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
33065
Length
1000 mm
Width
155 mm
Height
134 mm
Einlegetiefe
125 mm
Weight
5.35 kg
Material
Stainless steel 1.4404
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
10
Sales text
Slotted cover SW 10 mm, neck height 105 mm, stainless steel V4A, asymmetric, with integrated full-surface connector, cl. A 15, with integrated access cover left, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover SW 10 mm, neck height 105 mm, asymmetric, stainless steel CNS 1.4404, with integrated full-surface connector, load class A 15 according to EN 1433, with integrated access cover left, length 1000 mm, item no. 33065
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Installation instructions
