Article No. 72116
SLOTTED COVER 100 with removable center bar, neck height 160 mm, class B 125
Access Cover, for duo slotted cover SW 2 x 12.5 mm, stainless steel, asymmetric, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

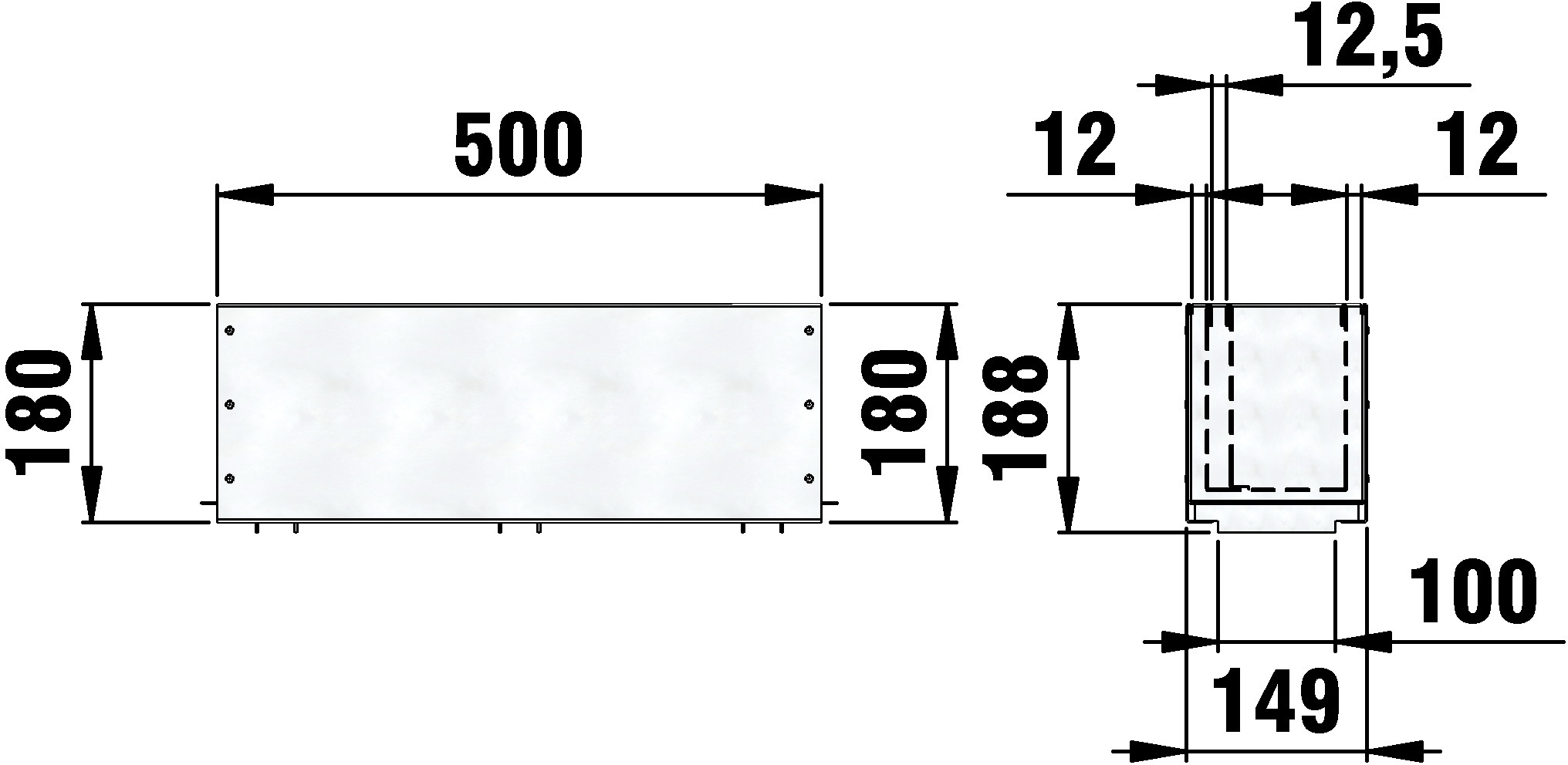

Technical drawing

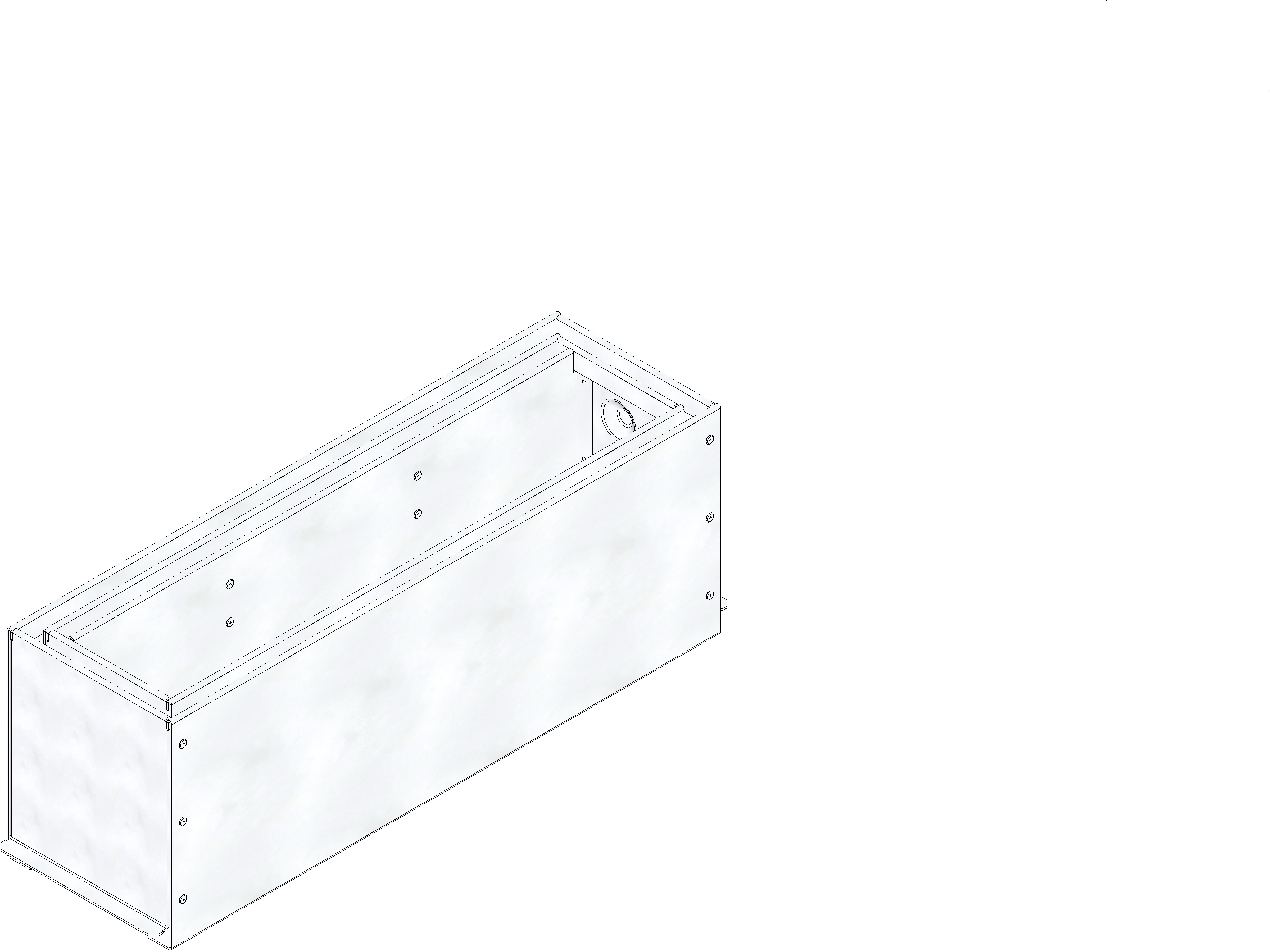

Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
72116
Length
500 mm
Width
149 mm
Height
188 mm
Einlegetiefe
180 mm
Weight
7.80 kg
Material
Stainless steel 1.4301
Intake cross-section
400.0 cm²/m
Nominal size
100
Inlet opening
12
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Sales text
Access Cover for duo slotted cover SW 2x12.5 mm, neck height 160 mm, stainless steel, asymmetric, cl. B 125, RECYFIX PRO 100, 0.5 m
Product description
RECYFIX PRO 100 - Access cover for duo slotted cover SW 2x 12.5 mm, neck height 160 mm, asymmetric, stainless steel CNS 1.4301, load class A 15 - B 125 according to EN 1433, installation length 500 mm, item no. 72116
Packaging unit
-
