Article No. 41208
RECYFIX STANDARD 100, trafficable
Type 010 with slotted cover SW 80/9 mm, stainless steel, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

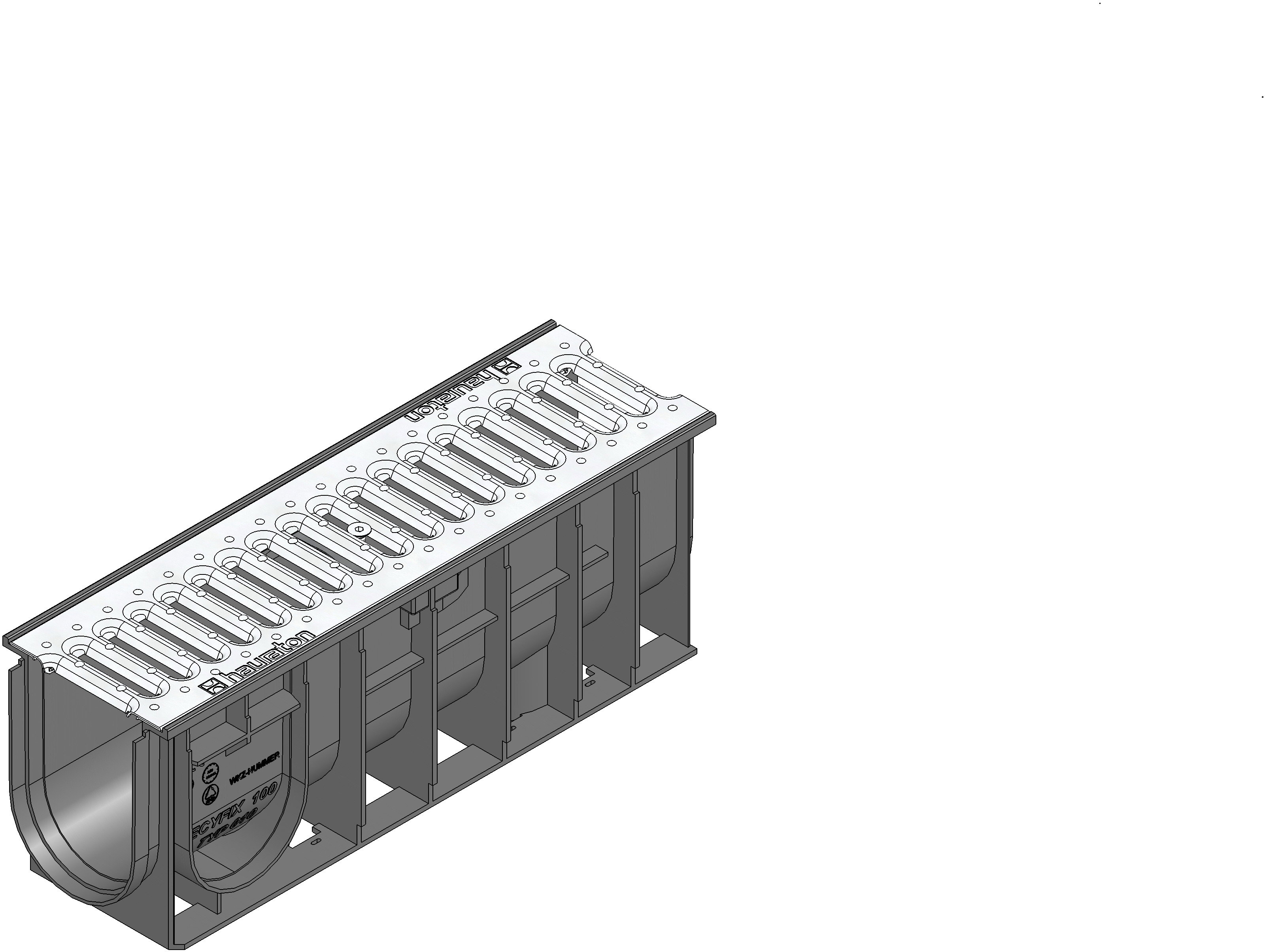

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41208
Length
500 mm
Width
150 mm
Height
185 mm
Einlegetiefe
3 mm
Weight
2.60 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
266.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 010 with slotted cover SW 80/9 mm, stainless steel, trafficable, locked, 0.5 m
Product description
RECYFIX STANDARD 100 type 010 - Channel body made of recycled polypropylene, according to EN 1433, with slotted cover SW 80/9 mm, made of stainless steel CNS 1.4301, overlying, with locking, trafficable, LxWxH 500x150x185 mm, item no. 41208
Packaging unit
84
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
