Article No. 10446
RECYFIX PRO 200
for NW 200, with silt bucket made of recycled PP, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

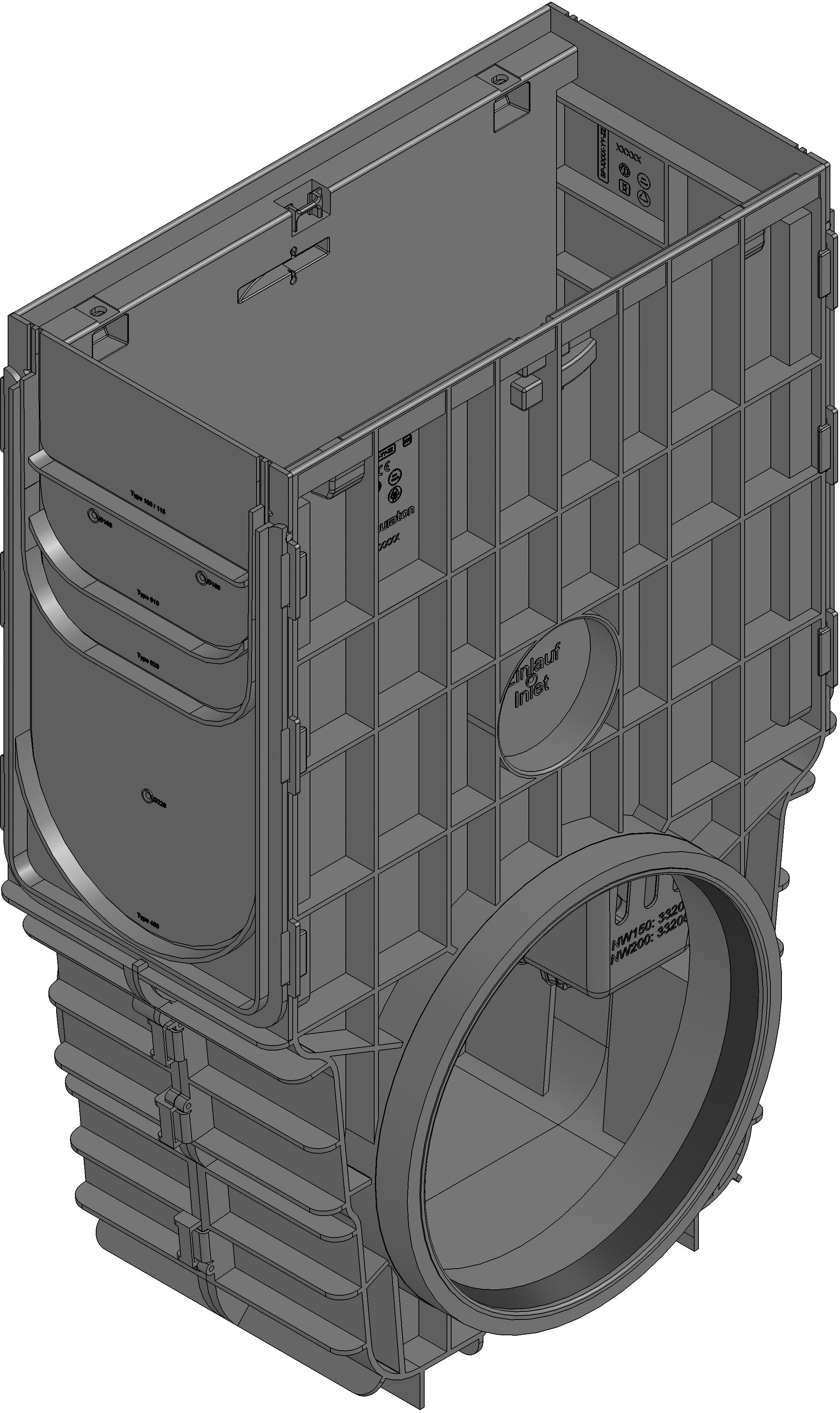

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10446
Length
500 mm
Width
262 mm
Height
816 mm
Weight
8.73 kg
Material
recycled polypropylene
Nominal size
200
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with silt bucked made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PRO 200, 0.5 m
Product description
RECYFIX PRO 200 - Sump unit made of made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 200, load class A 15 - D 400 according to EN 1433, in conjunction with slotted covers up to class D 400, LxWxH 500x262x816 mm, item no. 10446
Packaging unit
4
