Article No. 10440
RECYFIX PRO 150
for NW 150, with silt bucket made of recycled PP, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

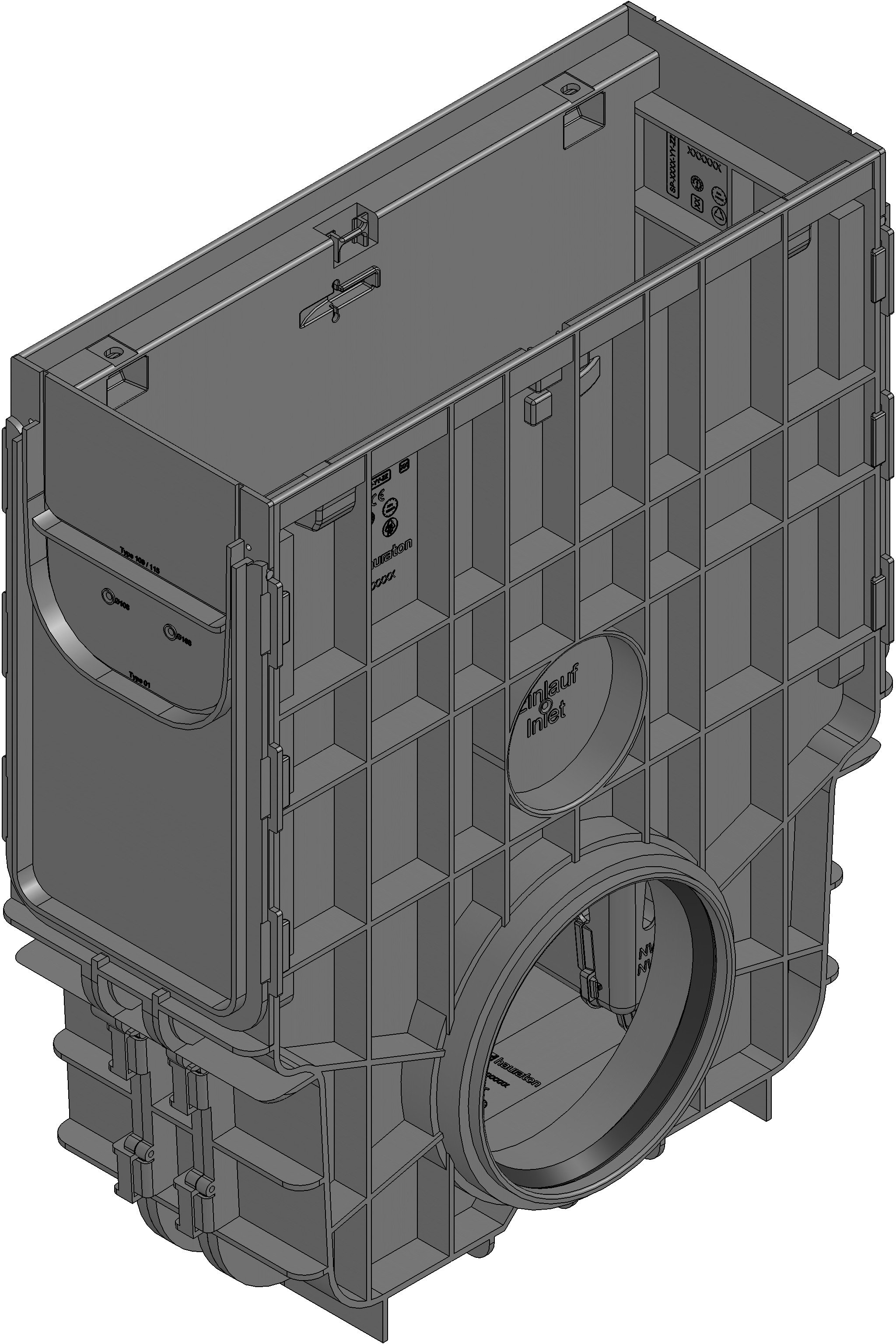

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10440
Length
500 mm
Width
212 mm
Height
643 mm
Weight
6.91 kg
Material
recycled polypropylene
Nominal size
150
Regulations
EN 1433
Sales text
Sump unit with integrated edge frames, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PRO 150, 0.5 m
Product description
RECYFIX PRO 150 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 100, load class A 15 - C 250 according to EN 1433, in conjunction with slotted covers up to load class D 400, LxWxH 500x162x643 mm, item no. 10440
Packaging unit
8
