Article No. 13779
RECYFIX HICAP T 5000 up to class F 900
Access unit, with ductile iron cover SW 150/20 mm, KTL-coated, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

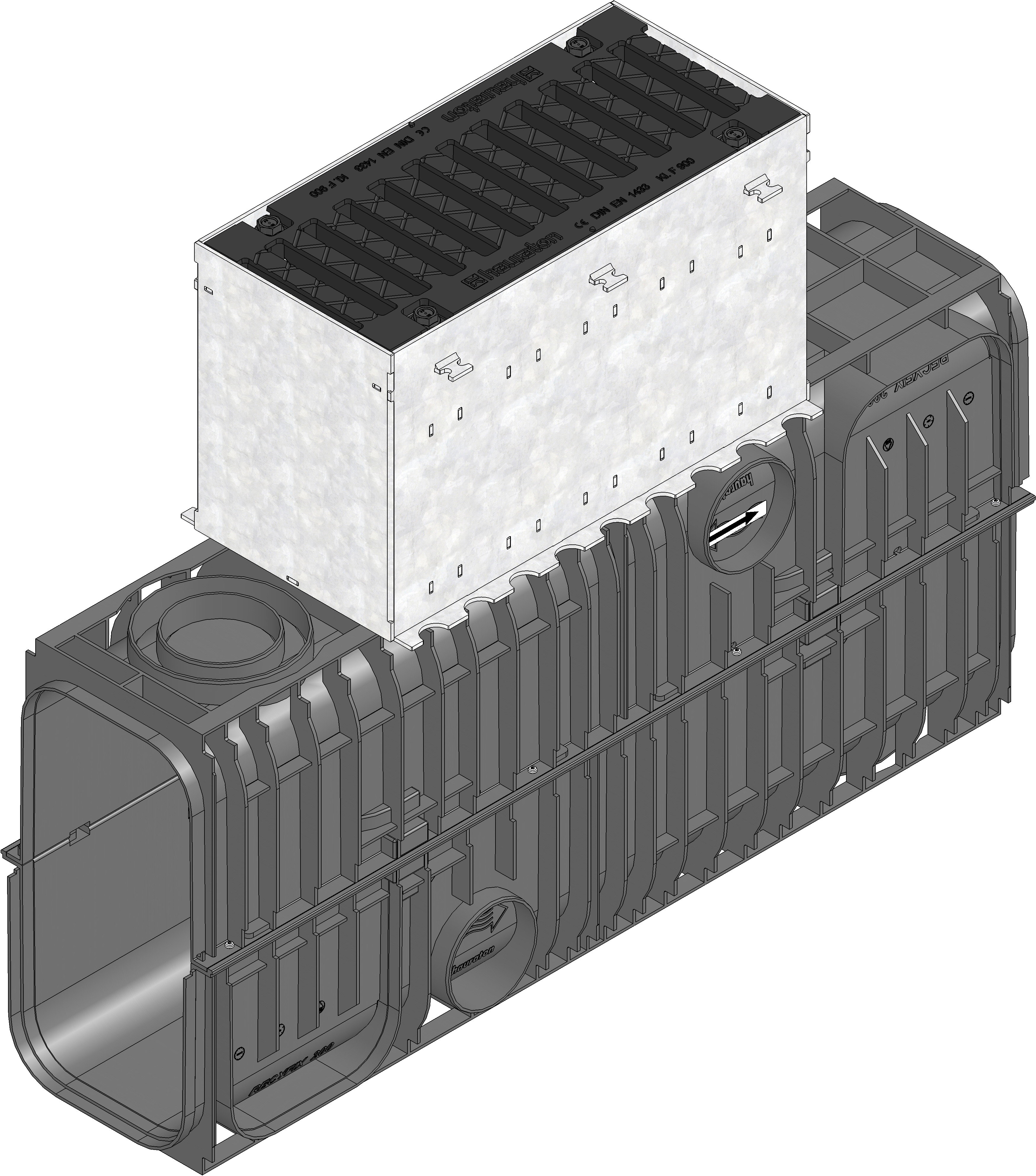

Product image

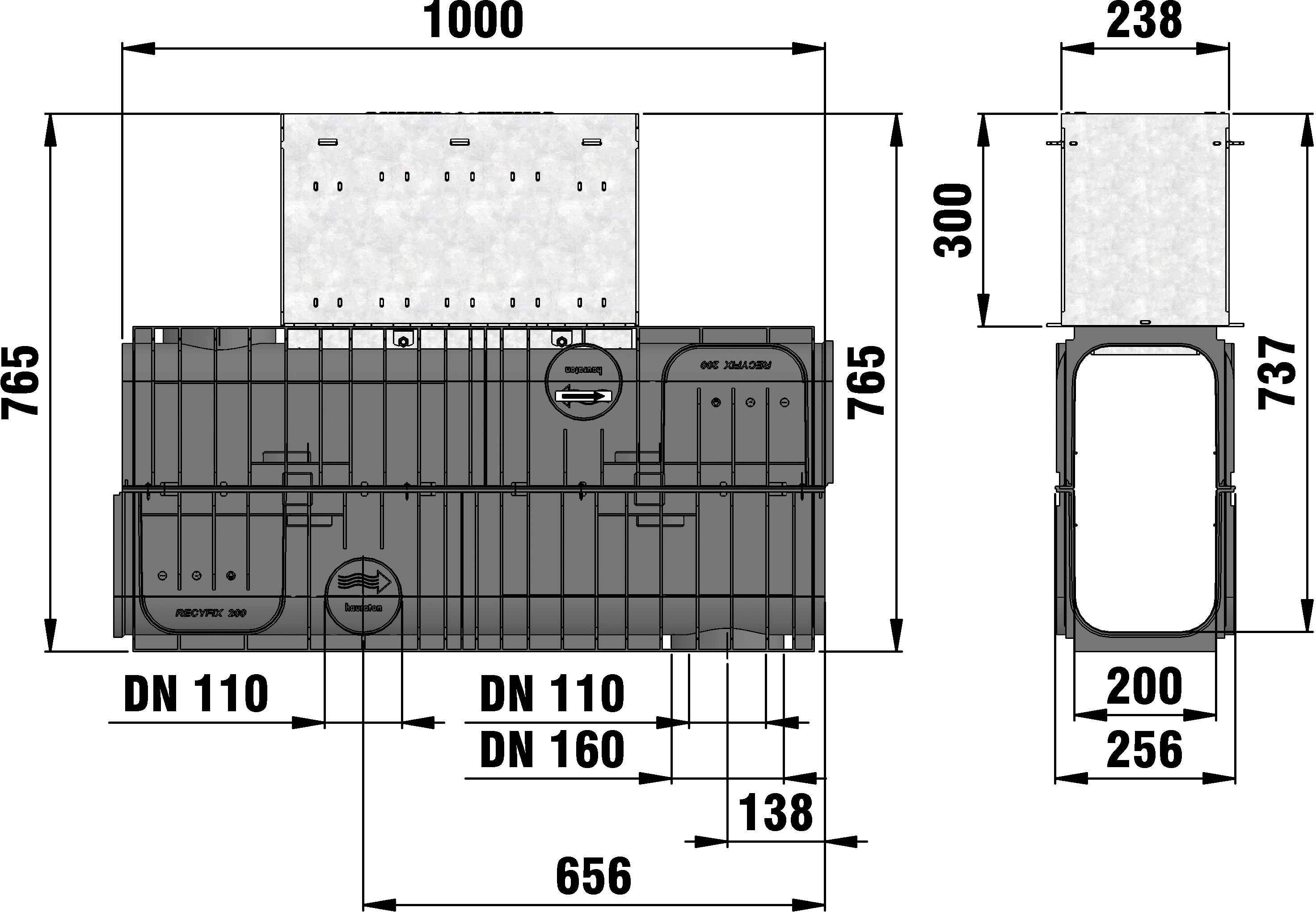

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
13779
Length
1000 mm
Width
256 mm
Height
765 mm
Weight
45.10 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled polypropylene, Stainless steel (V2A), Steel 8.8 zinc-laminated black, strip galvanized steel
Intake cross-section
710.0 cm²/m
Nominal size
5000
Type according to DIN EN 1433
M
Material cover
Ductile iron GJS 500-7
Regulations
DIN 19580
Sales text
Access unit with ductile iron cover SW 150/20 mm, KTL-coated, cl. F 900, RECYFIX HICAP 5300, 1 m
Product description
RECYFIX HICAP 5300 Access unit, according to EN 1433, CE compliant, consists of channel body made of recycled polypropylene, and top element, height 300 mm, made of galvanised steel, with ductile iron cover SW 150/20 mm made of spheroidal ductile iron EN-GJS-500 -7, KTL-coated, 4-fold locking, load class A 15 - F 900 according to EN 1433, length 1000 mm, item no. 13779
Packaging unit
4
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250,
Pavement class A 15 - C 250,
Installation example
Concrete class A 15 - E 600,
Pavement / large-size slab class D 400 - F 900,
Concrete class A 15 - F 900,
Asphalt class D 400 - F 900, Inspection element
Concrete class D 400 - F 900, Inspection element
Asphalt class E 600 - F 900, Inspection element
Concrete class E 600 - F 900, Inspection element
Asphalt class E 600, Sump unit
Concrete class E 600, Sump unit
Concrete class F 900, Sump unit
