RECYFIX HICAP F 8000 up to load class D 400

13808

1000 mm

420 mm

950 mm

48.78 kg

Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Stainless steel (V2A), Steel 8.8 zinc-laminated black

624.0 cm²/m

8000

M

Ductile iron GJS 500-7 with KTL-coating

EN 1433, DIN 19580

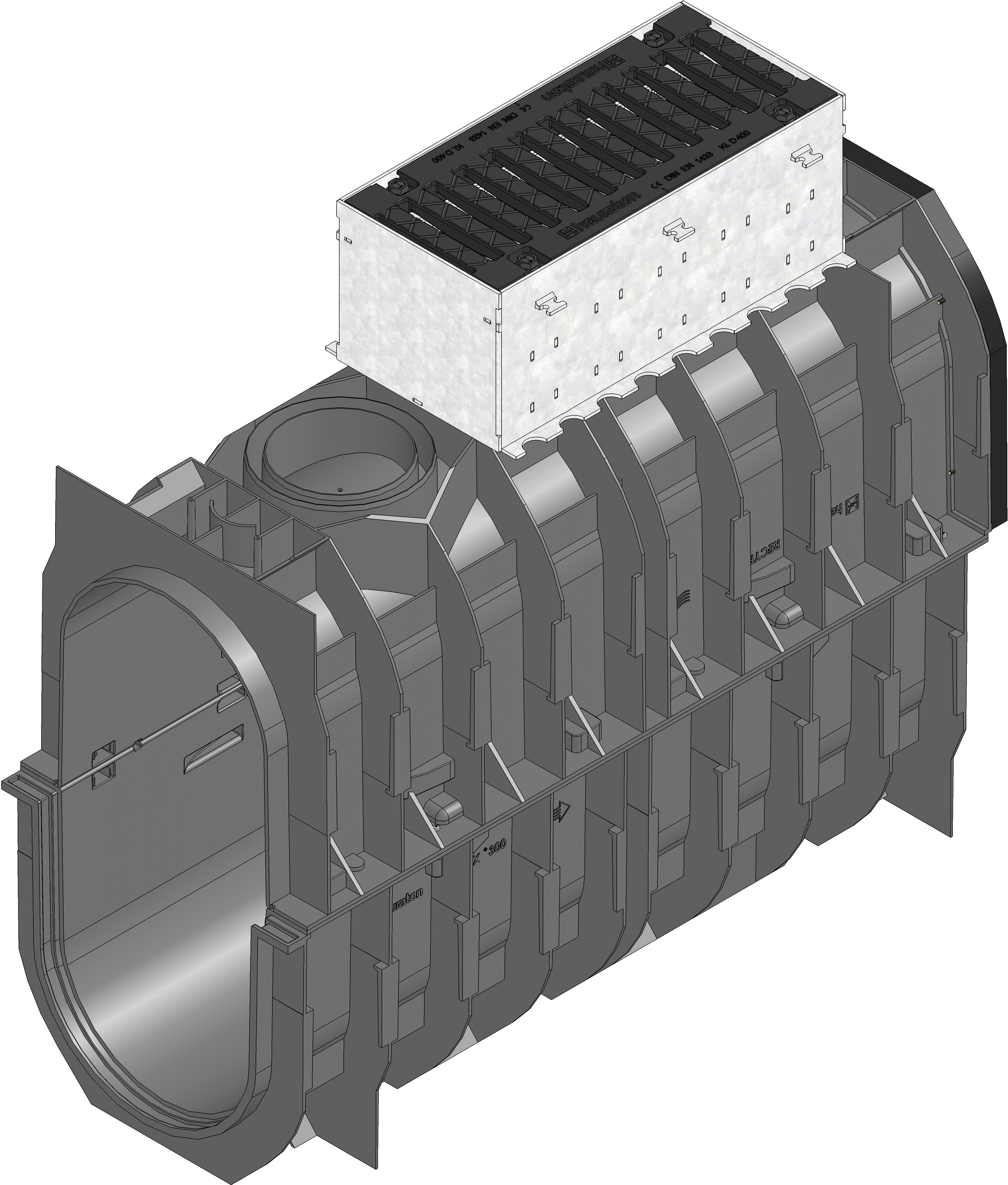

Access unit with ductile iron cover SW 150/18 mm, KTL-coated, cl. D 400, RECYFIX HICAP 8200, 1 m

RECYFIX HICAP 8200 - Access unit, according to EN 1433, CE compliant, consists of channel body made of recycled polypropylene, and top element, height 200 mm, made of galvanised steel, with ductile iron cover SW 150/18 mm, made of spheroidal ductile iron EN-GJS -500-7, KTL-coated, 4-fold locking, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 13808

3
