Article No. 32166
Inspection elements

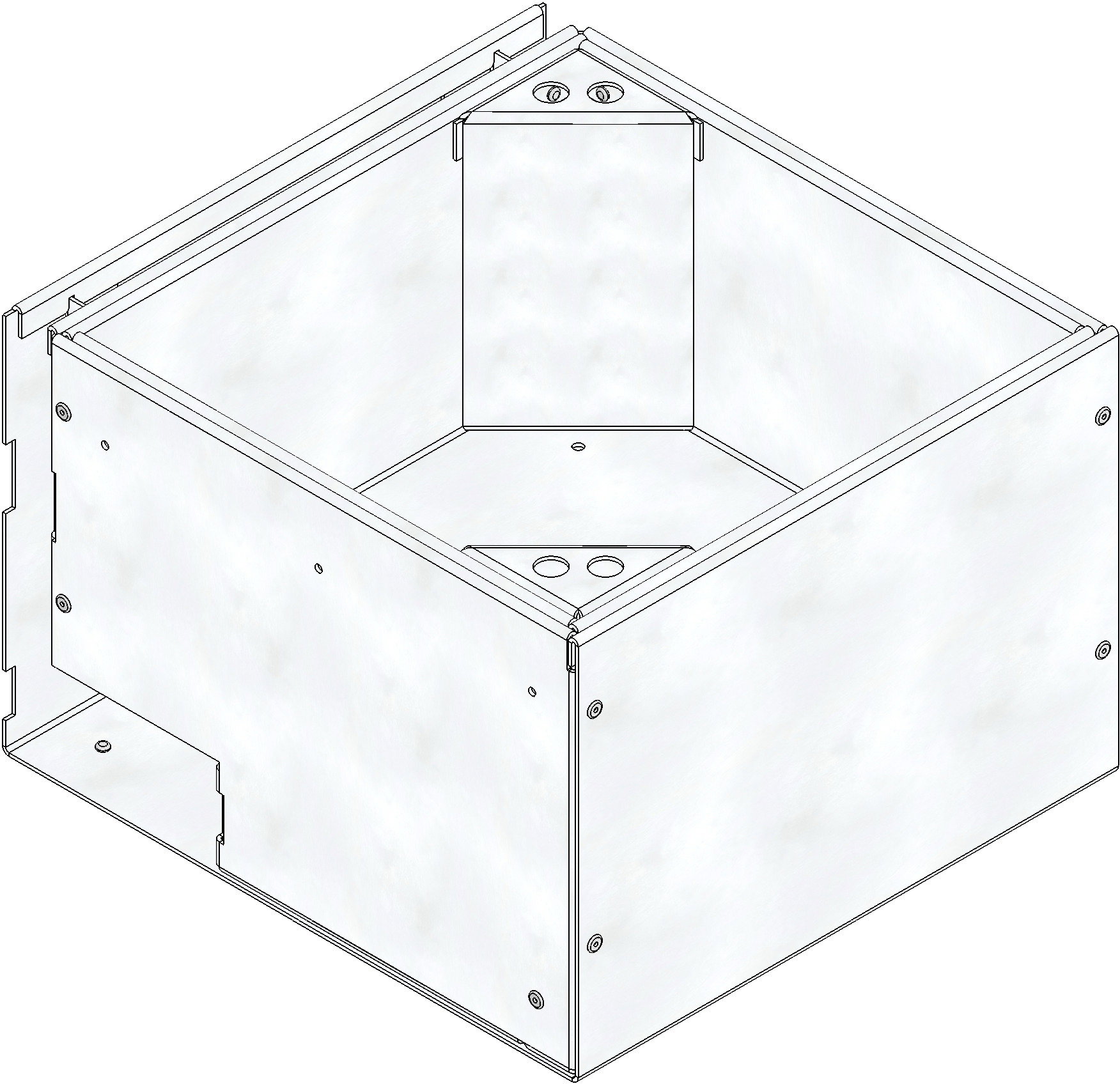

Access unit with removable inner pan, type 180, neck height 130 mm, asymmetric, stainless steel
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
32166
Length
253 mm
Width
270 mm
Height
180 mm
Weight
6.31 kg
Material
PVC-U, Stainless steel 1.4301
Nominal size
100
Sales text
Access unit with removable inner pan, SW 12 mm, neck height 130 mm, stainless steel, asymmetric, cl. A 15, with PVC-screw socket DN/ OD 100, grey and blind cover, stainless steel, STEELFIX SLOT 100 type 180, 0.25x0.27 m
Product description
STEELFIX SLOT 100 type 180 - Access unit, made of stainless steel CNS 1.4301, with removable inner pan for on-site infilling, with PVC-screw socket DN/OD 100, grey, and blind cover, made of stainless steel, vertical connection possibility with screw socket DN/OD 100, LxWxH 253x270x180 mm, item no. 32166
Packaging unit
-
