Article No. 66064
Further accessories
Horizontal fixing anchor, stainless steel, type 45
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

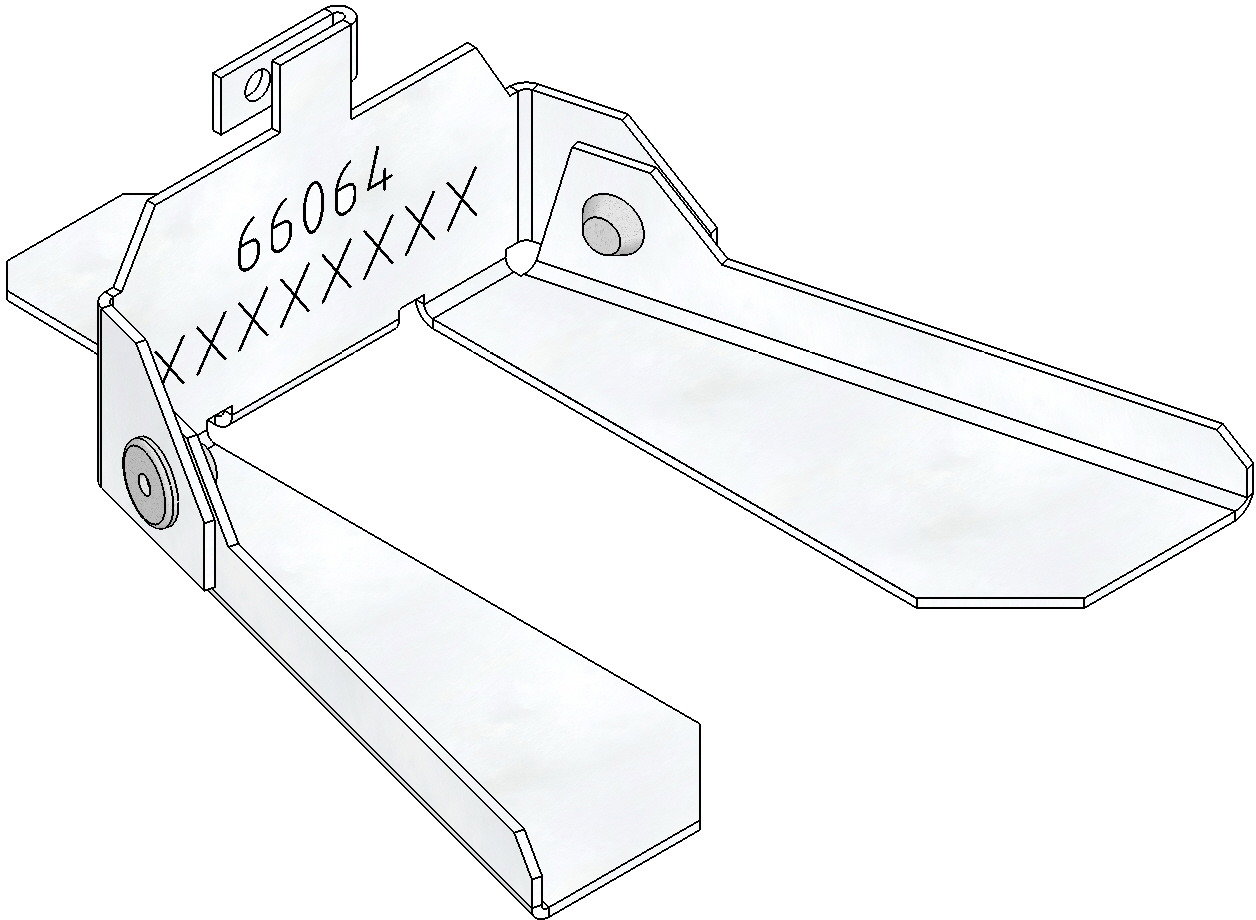

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
66064
Length
100 mm
Width
86 mm
Height
35 mm
Weight
0.05 kg
Material
Stainless steel 1.4301
Nominal size
115, 135, 155, 205, 255
Sales text
Horizontal fixing anchor, stainless steel, STEELFIX REGULAR type 45
Product description
STEELFIX REGULAR type 45 - Horizontal fixing anchor, made of stainless steel CNS 1.4301, to be clipped (from the outside) into the edge frame on site, 2 pieces per side can be clipped in, item no. 66064
Packaging unit
-
