Article No. 10582
FASERFIX PARK, class D 400
Channel, with opening DN/OD 75, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

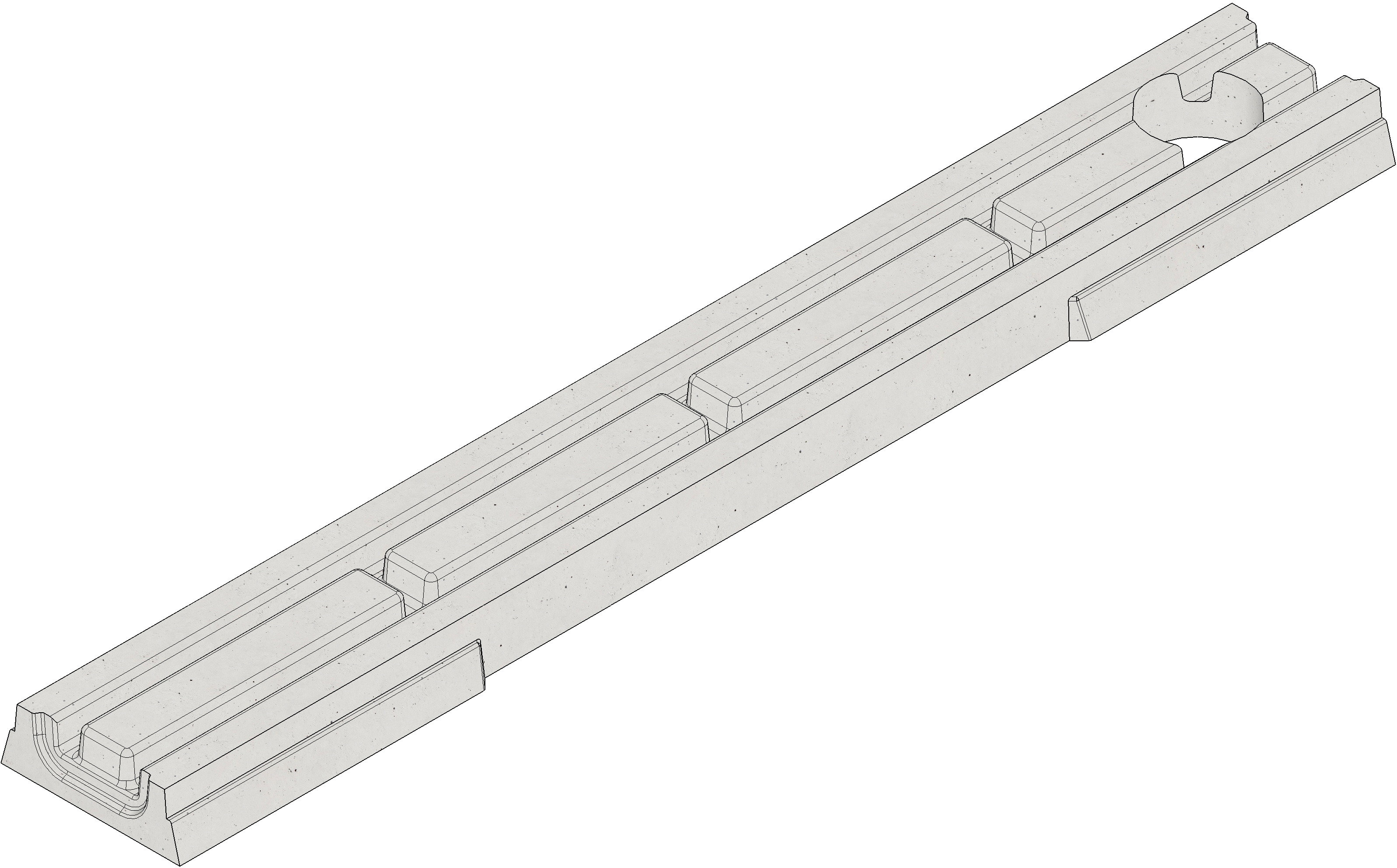

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
10582
Length
1000 mm
Width
147 mm
Height
48 mm
Weight
12.36 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX PARK Channel with outlet DN/OD 75, 1 m
Product description
FASERFIX PARK Channel made of fibre-reinforced concrete, load class A 15 - D 400 according to EN 1433, with connection opening DN/OD 75 vertical at the end of channel run in channel base, CE compliant, with sealing groove LxWxH 1000x147x48 mm, item no. 10582
Packaging unit
70
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - D 400,
