Article No. 65472
Extension frame element 40 x 40
Frame for Gully-extension 40x40, type 70, stainless steel
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

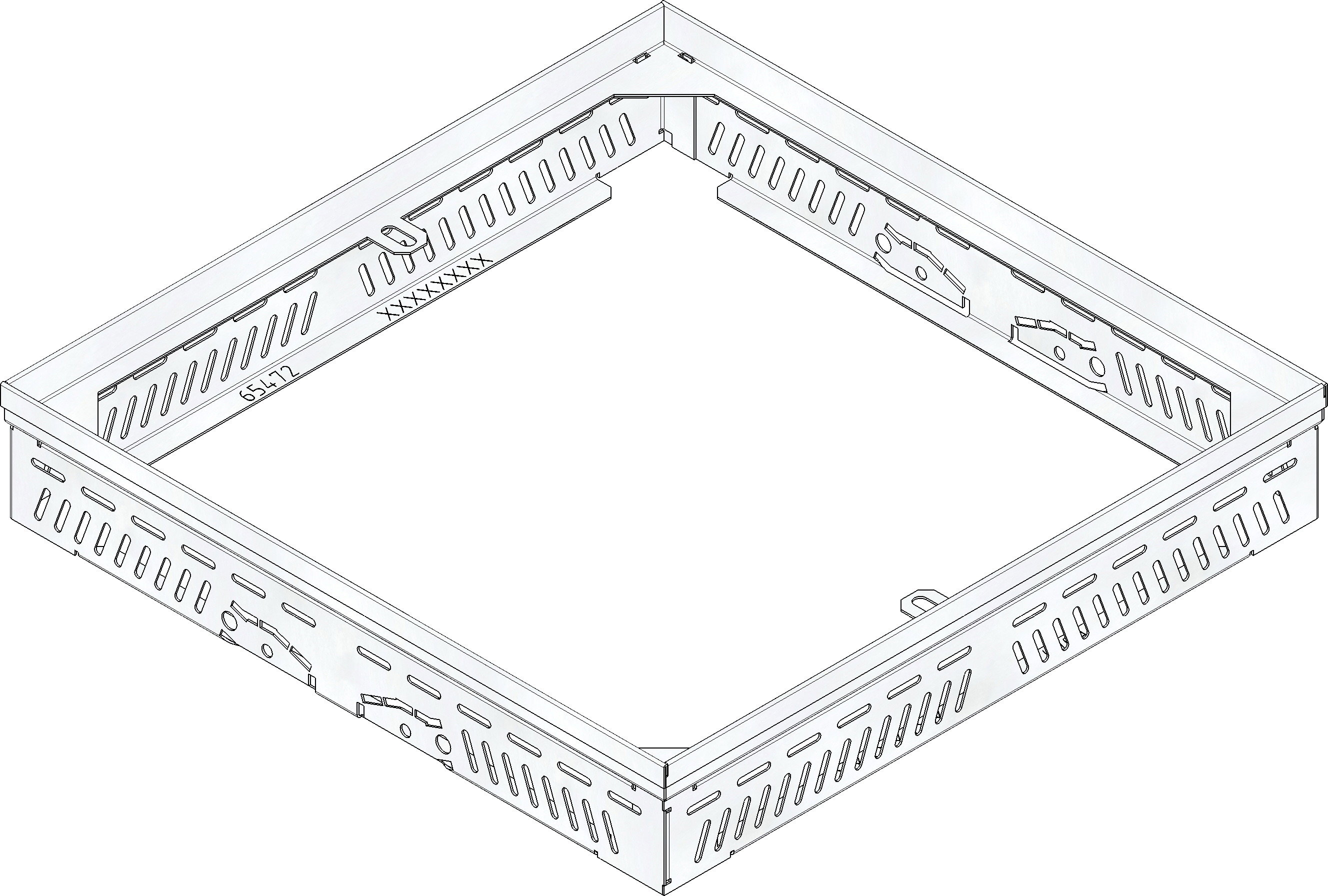

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65472
Length
400 mm
Width
400 mm
Height
70 mm
Weight
1.27 kg
Material
Stainless steel 1.4301
Height of angle housing
-
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
Extension frame element 40/40 type 70 as inspection shaft of installation height 70 mm, stainless steel, cl. A 15, DACHFIX POINT Gully 40/40 type 70
Product description
DACHFIX POINT Gully 40/40 type 70, made of stainless steel CNS 1.4301, also for maintenance purposes above a flat roof drain, with connection possibility for cross-intersection channel, load class A 15, LxWxH 400x400x70 mm, item no. 65472
Packaging unit
60
Tender Texts
Installation instructions
