Article No. 10860
E-TEC 65, height 100 mm, class A 15
Type 100, black, with design slotted cover made of aluminium, Corten steel
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

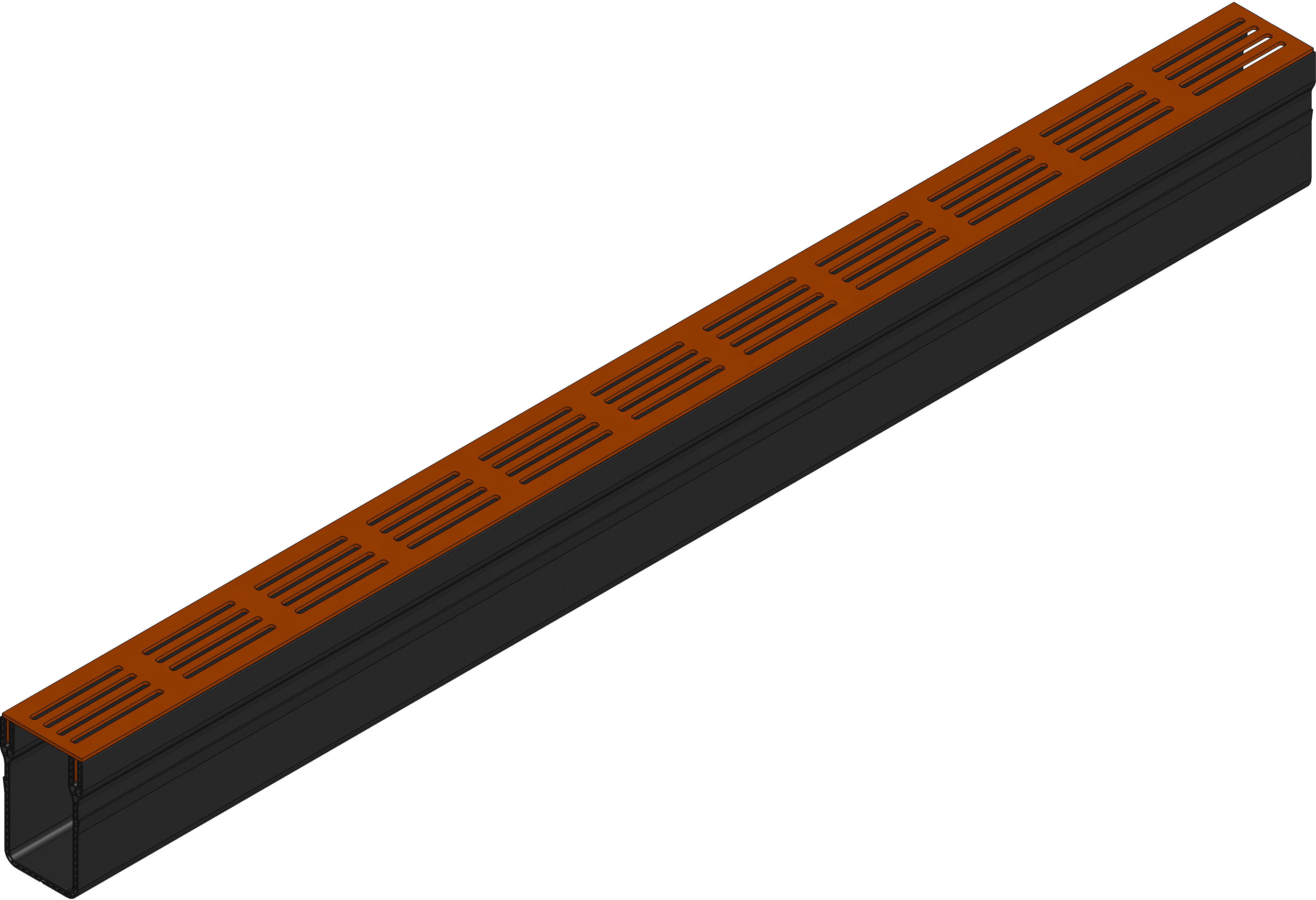

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10860
Length
1000 mm
Width
65 mm
Height
100 mm
Weight
2.90 kg
Intake cross-section
158.0 cm²/m
Nominal size
50
Type according to DIN EN 1433
not specified
Sales text
HAURATON E-TEC 65 type 100 Channel made of PVC, black, with design slotted cover made of Corten steel, cl. A 15 (based on EN 1433) , installation height 100 mm, 1 m
Product description
HAURATON E-TEC 65 type 100 - Channel made of PVC, black, with design slotted cover made of Corten steel, load class A 15 (based on EN 1433), LxWxH 1000x65x100 mm, item no. 10860
Packaging unit
100
Tender Texts

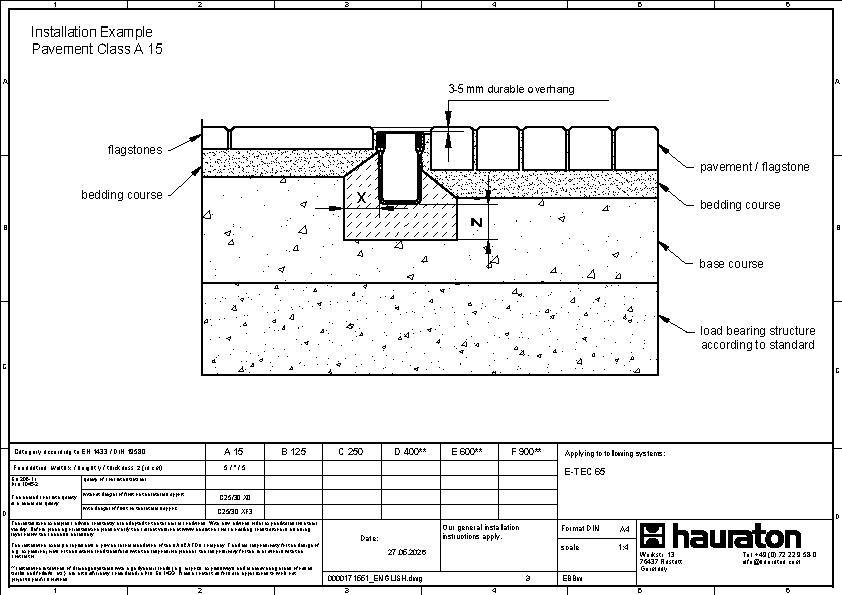

Installation example
Installation example
