Article No. 10662
DRIVETEC ST 100, Class B 125
Type 01 with ductile iron cover SW 80/8 mm, black, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

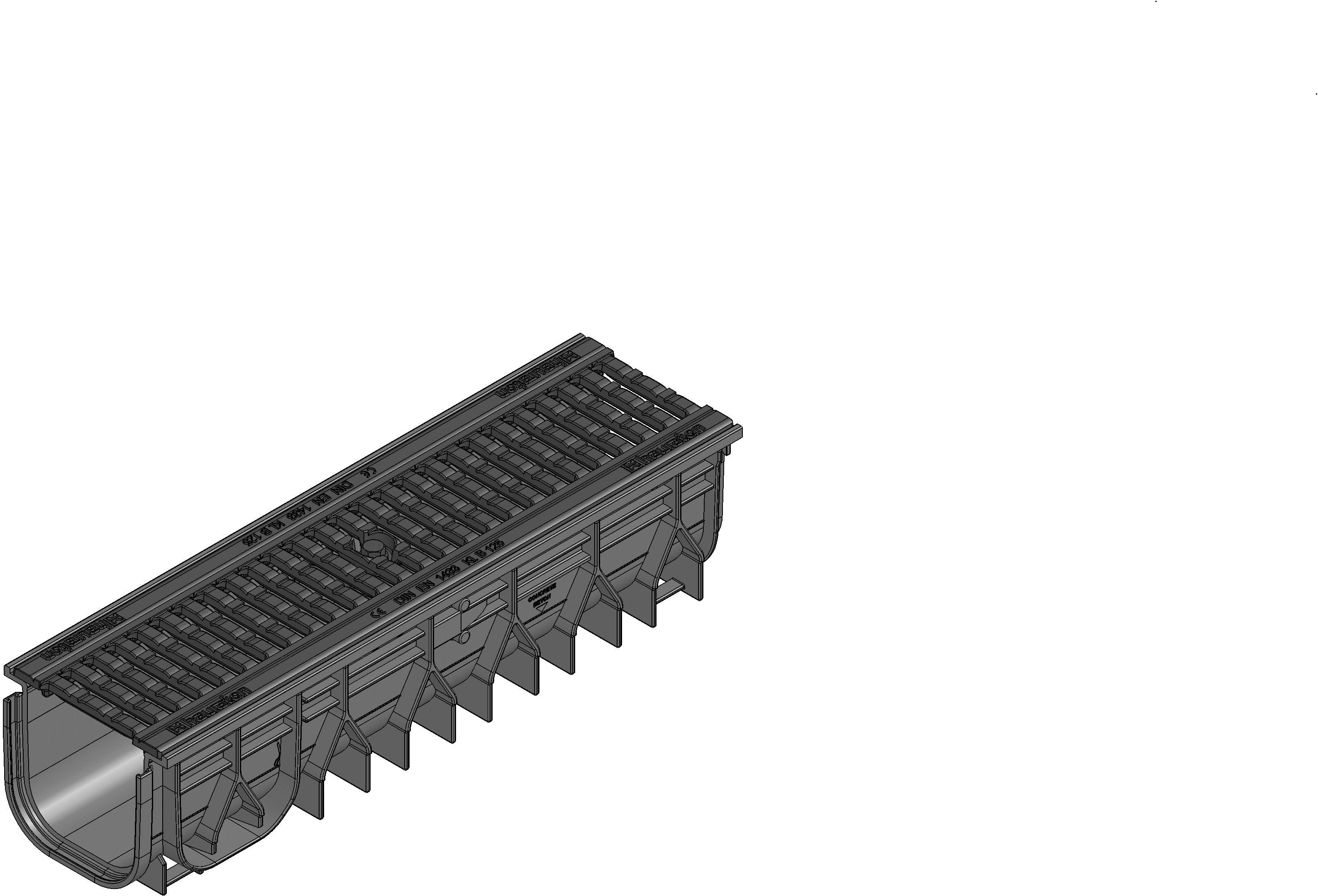

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10662
Length
500 mm
Width
141 mm
Height
118 mm
Einlegetiefe
6 mm
Weight
3.88 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
320.0 cm²/m
Nominal size
100
Internal channel cross-section
95 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
DRIVETEC ST 100 Channel type 01 with ductile iron cover SW 80/8 mm, black, cl. B 125, locked, 0.5 m
Product description
DRIVETEC ST 100 type 01 - Channel body made of recycled polypropylene, with ductile iron cover SW 80/8 mm, made of spheroidal ductile iron EN-GJS, black, overlying, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x141x118 mm, item no. 10662
Packaging unit
128
Declaration of Performance
Tender Texts
Installation example
Asphalt class A 15 - B 125,
Pavement class B 125,
Installation example
