Article No. 10237

DRIVETEC PA 100, Class B 125

Type 01 with slotted mesh cover made of PA, MS 18/10 mm, black, locked, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

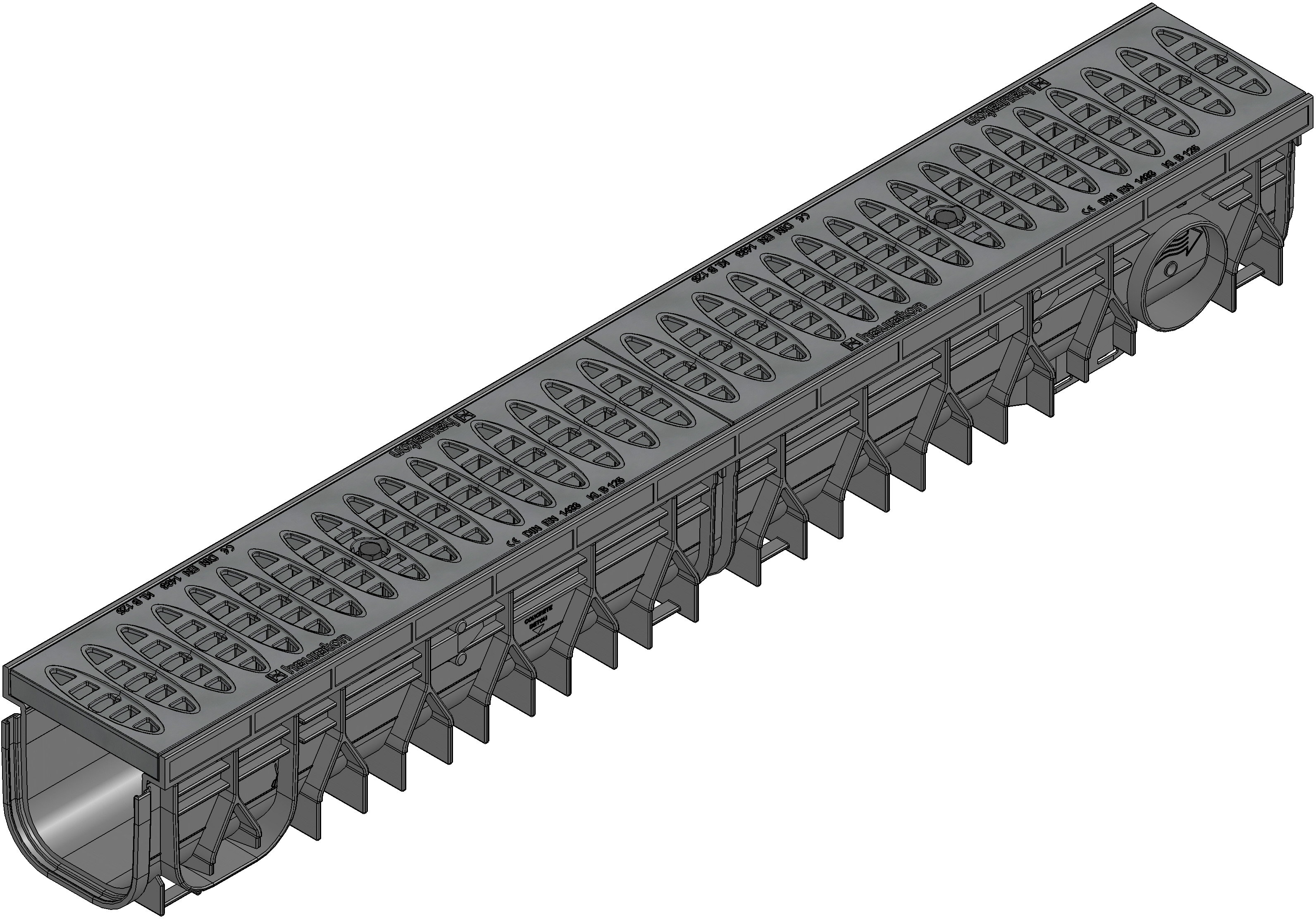

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics
Article No.
10237
Length
1000 mm
Width
141 mm
Height
134 mm
Einlegetiefe
20 mm
Weight
3.26 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
263.0 cm²/m
Nominal size
100
Internal channel cross-section
95 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
DRIVETEC PA 100 Channel type 01 with integrated edge frames, with slotted mesh cover made of PA, MS 18/10 mm, black, cl. B 125, locked, 1 m
Product description
DRIVETEC PA 100 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with lateral (DN/OD 75) and vertical connection possibility (DN/OD 110 through adaptor, available separately), with slotted mesh cover MS 18/10 mm, made of polyamide, black, with locking, load class from A 15 - B 125 according to EN 1433, LxWxH 1000x141x134 mm, item no. 10237
Packaging unit
64
