Article No. 10238

DRIVETEC PA 100, Class B 125

Type 01 with slotted mesh cover made of PA, MS 18/10 mm, black, locked, 0.5 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

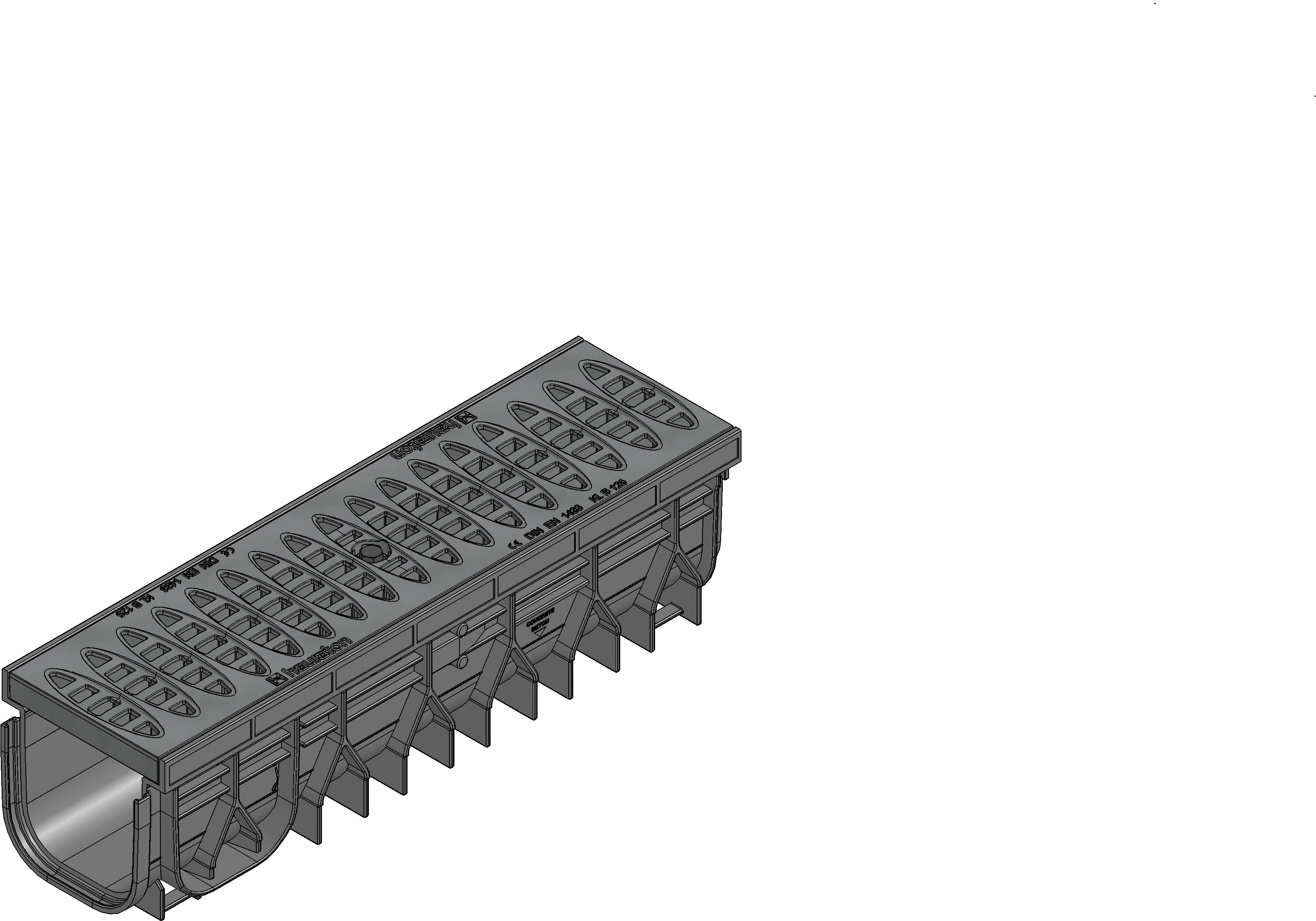

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
10238
Length
500 mm
Width
141 mm
Height
134 mm
Einlegetiefe
20 mm
Weight
1.67 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
263.0 cm²/m
Nominal size
100
Internal channel cross-section
95 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
DRIVETEC PA 100 Channel type 01 with integrated edge frames, with slotted mesh cover made of PA, MS 18/10 mm, black, cl. B 125, locked, 0.5 m
Product description
DRIVETEC PA 100 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with mesh cover MS 18/10 mm, made of polyamide, black, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x141x134 mm, item no. 10238
Packaging unit
128
