DRAINFIX System shafts 300/1800** mm with filter unit

97850

-

-

1800 mm

49.70 kg

Ductile iron GJS 500-7, PE-HD

-

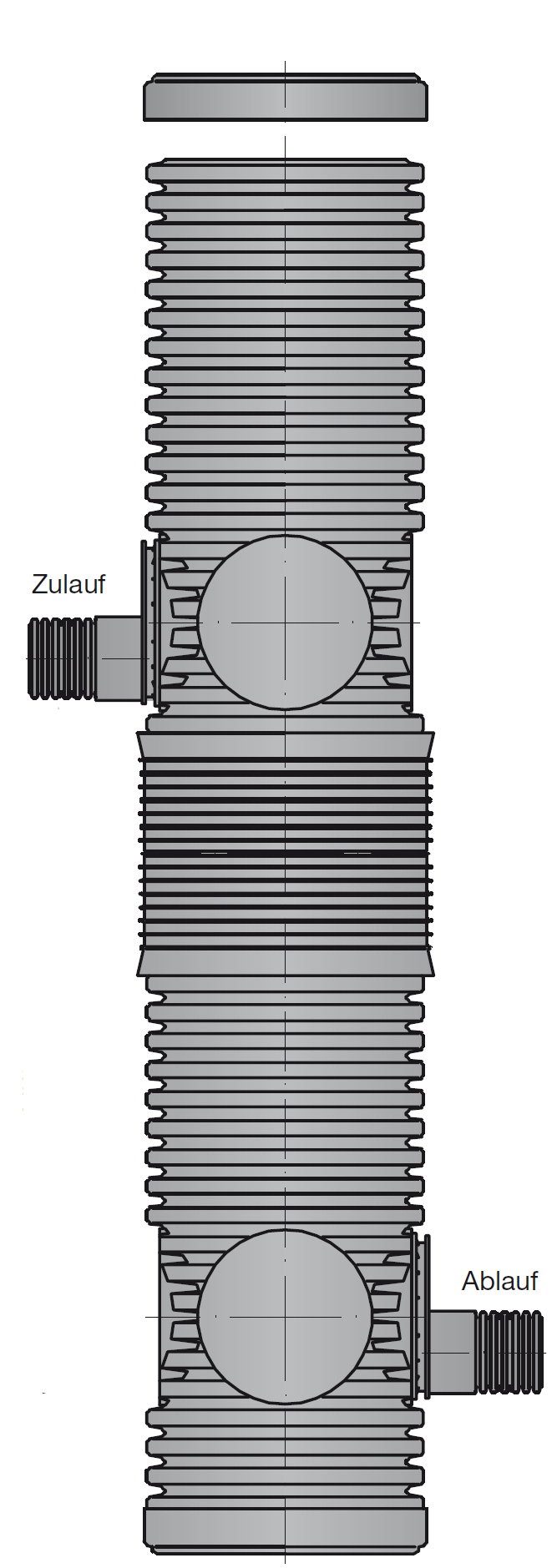

DRAINFIX Multifunction gully 300/1800 mm, with removable silt bucket, with ductile iron cover, closed, cl. B 125 - D 400, in- and outlet DN/OD 200

DRAINFIX Multifunction gully, 2-part, composite pipe construction with smooth inner surface and profiled outer surface, made of high -density polyethylene, inner diameter 300 mm, outer diameter 353 mm, maximum total height 1800 mm plus installation height of closed ductile iron cover, inlet/outlet height difference between > 580 mm, easy to adapt on site, with top part, height 900 mm, can be shortened up to 300 mm in height, with removable silt bucket, height 200 mm, factory-made with one inlet and adaptor DN/OD 200, optionally lockable with separately orderable blind cover, two further connection possibilities with separately orderable adaptor DN /OD 200, ductile iron cover, closed, with ventilation vents, made of spheroidal ductile iron, load class B 125 – D 400 according to DIN EN 124, with connection sleeve, with bottom part, height 900 mm, can be shortened up to 300 mm in height, with integrated sand trap, height 200 mm, factory-made with one outlet and adaptor DN/OD 200, optionally lockable with separately orderable blind cover, two further connection possibilities with separately orderable adaptor DN/OD 200, LxWxH 355x355x1800 mm, item no. 97850

-

0.0 l
