Article No. 65440

DACHFIX STEEL 255, height 75 mm

Type 75, stainless steel, 0.5 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

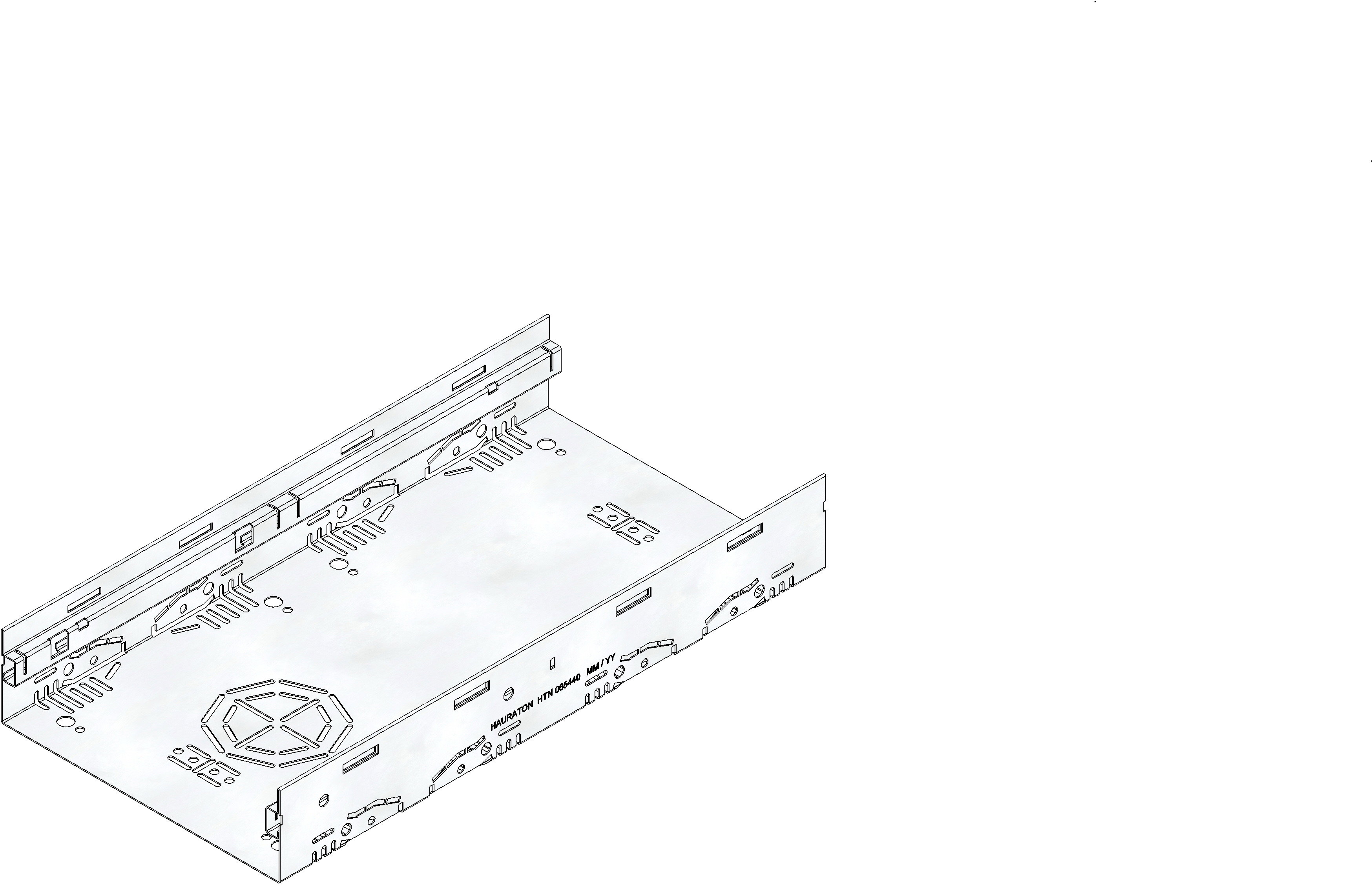

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
65440
Length
500 mm
Width
255 mm
Height
75 mm
Weight
1.76 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
255
Internal channel cross-section
137 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
DACHFIX STEEL 255 Channel body type 75, stainless steel, installation height 75 mm, 0.5 m
Product description
DACHFIX STEEL 255 type 75 - Channel body made of stainless steel CNS 1.4301, pedestrian and wheelchair accessible, cover support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 4-fold connection possibility for cross-intersection channel, with integrated, optional 2-fold fixing anchor, LxWxH 500x255x75 mm, item no. 65440
Packaging unit
208
