Article No. 65413

DACHFIX STEEL 255, height 45 mm

Type 45, height adjustable, stainless steel, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

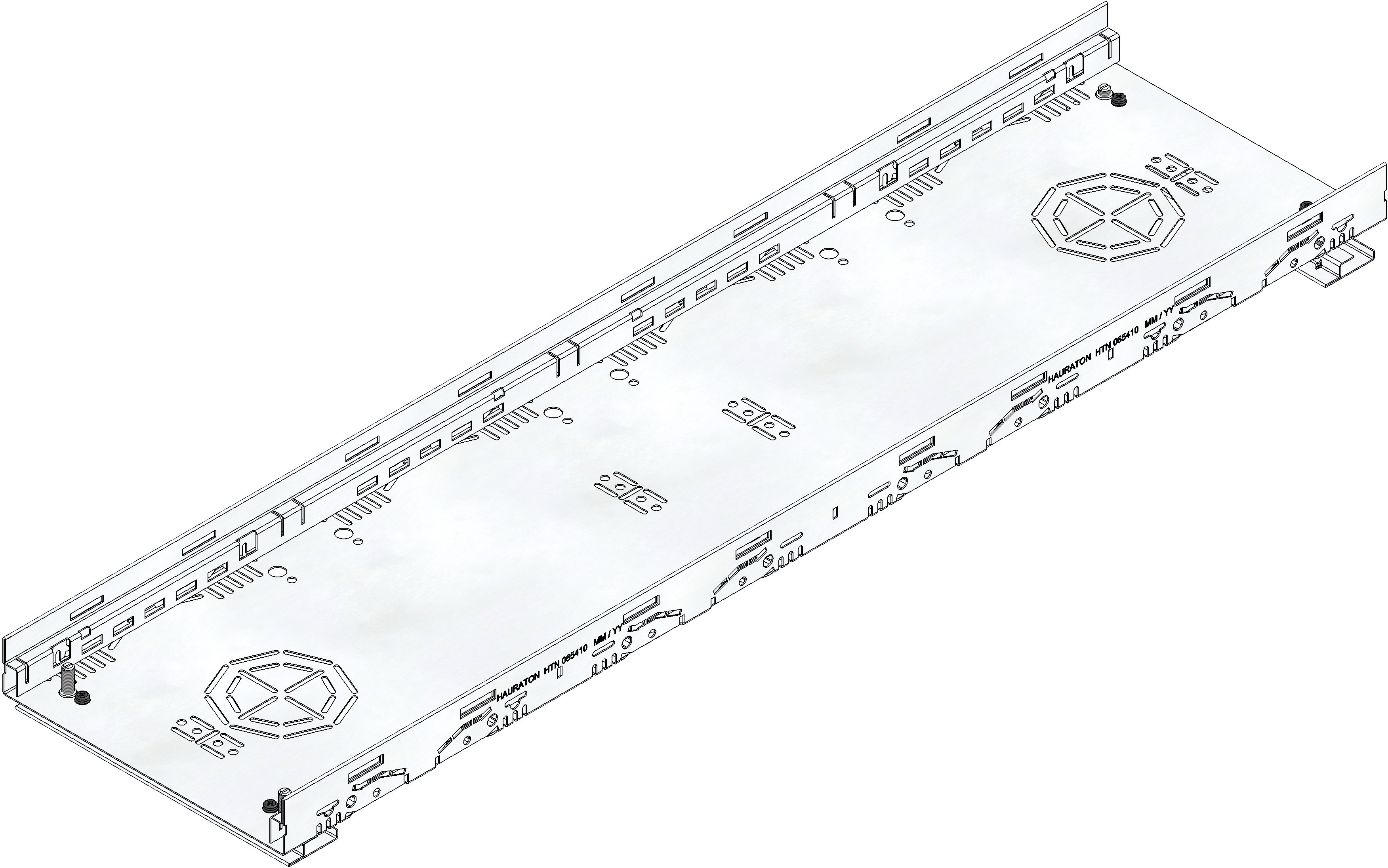

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
65413
Length
1000 mm
Width
255 mm
Height
59 - 74 mm
Weight
3.83 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
255
Internal channel cross-section
61 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
DACHFIX STEEL 255 Channel body type 45, height adjustable, stainless steel, height adjustment range 59-74 mm, 1 m
Product description
DACHFIX STEEL 255 type 45 - channel body with adjustable base plate, made of stainless steel CNS 1.4301, pedestrian and wheelchair accessible, cover support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 8-fold connection possibility for cross-intersection channel, with integrated, optional 4-fold fixing anchor, incl. 2 adjustment sets/metre, height adjustability 59-74 mm, LxWxH 1000x255x59-74 mm, item no. 65413
Packaging unit
360
