Article No. 10377
DACHFIX STEEL 205
Longitudinal cover Filigree, bar distance 8 mm, stainless steel, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

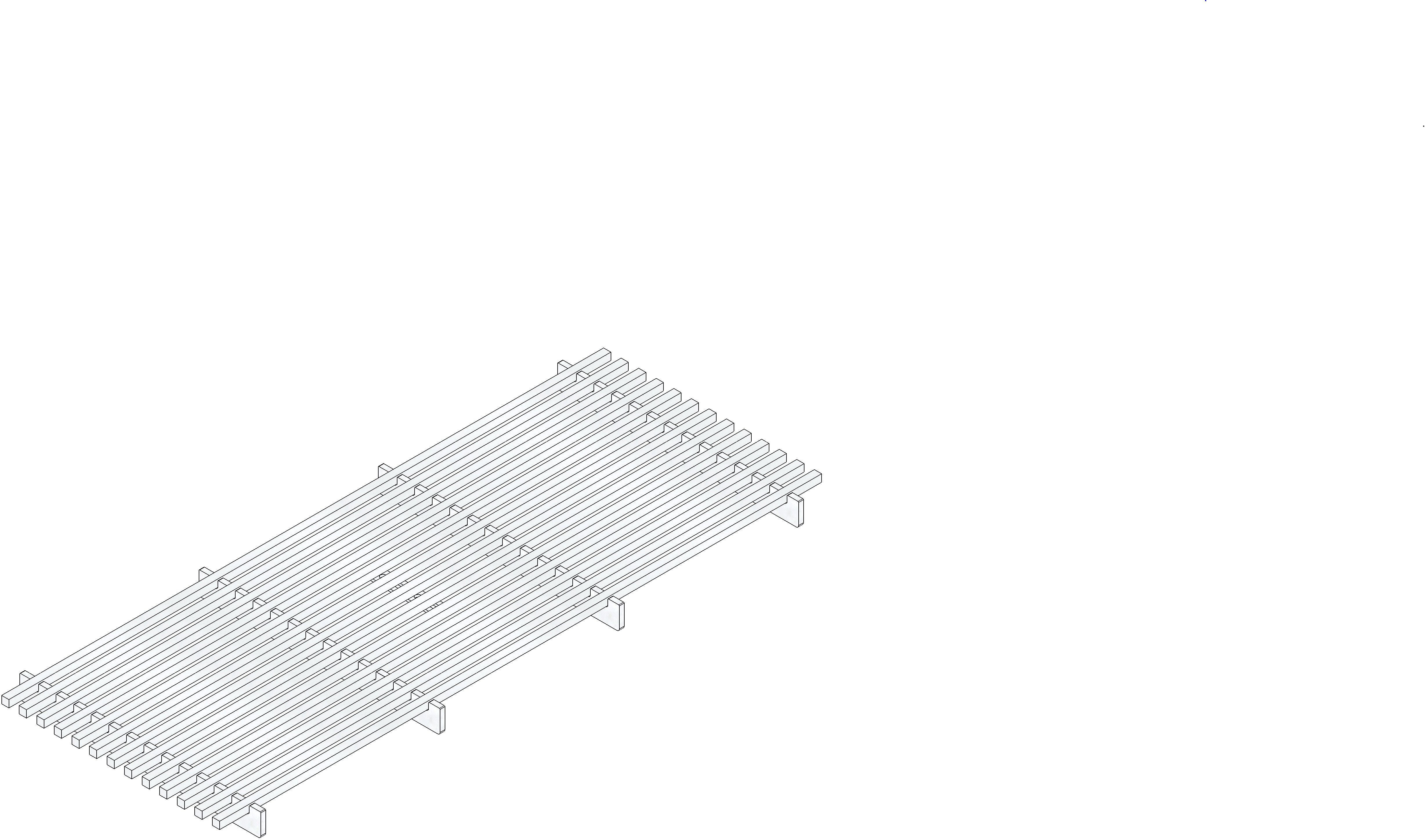

Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
10377
Length
500 mm
Width
199 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
2.23 kg
Material
Stainless steel 1.4301
Intake cross-section
1156.0 cm²/m
Nominal size
205
Inlet opening
0
Fixing type
Loose blatant, Locking handle
Material cover
Stainless steel 1.4301
Sales text
Longitudinal cover Filigree, bar distance 8 mm, stainless steel, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 205, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 205 -Longitudinal cover Filigree, bar distance 8 mm, made of stainless steel CNS 1.4301, load class A 15, installation length 500 mm, item no. 10377
Packaging unit
-
