Article No. 10373
DACHFIX STEEL 155
Longitudinal cover Filigree, bar distance 8 mm, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Top view

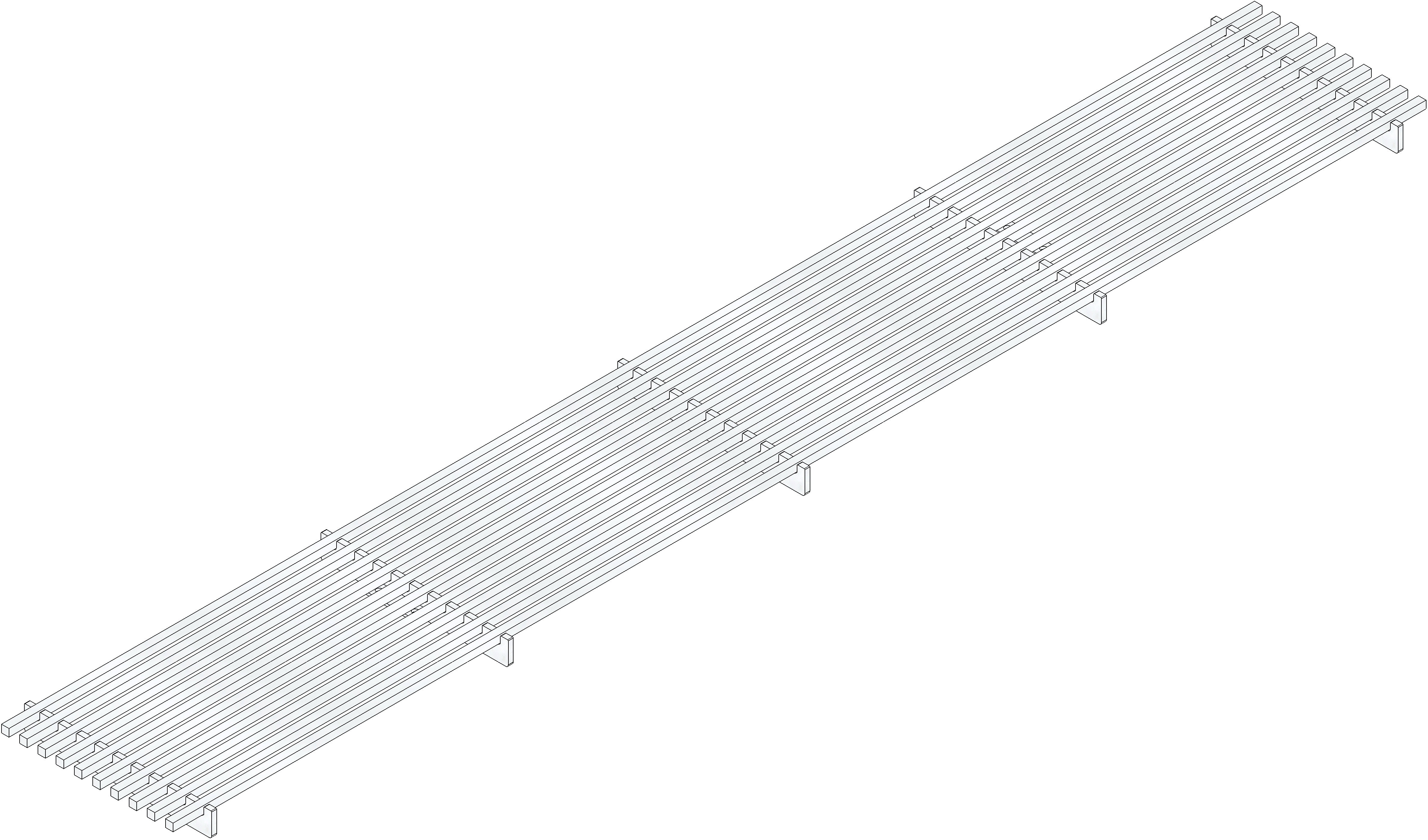

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10373
Length
1000 mm
Width
149 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
3.18 kg
Material
Stainless steel 1.4301
Intake cross-section
863.0 cm²/m
Nominal size
155
Inlet opening
0
Fixing type
Loose blatant, Locking handle
Material cover
Stainless steel 1.4301
Sales text
Longitudinal cover Filigree bar distance 8 mm, stainless steel, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 155, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 155 -Longitudinal cover Filigree, bar distance 8 mm, made of stainless steel CNS 1.4301, load class A 15, installation length 1000 mm, item no. 10373
Packaging unit
-
