Article No. 65243

DACHFIX STEEL 155, height 75 mm

Type 75, height adjustable, stainless steel, 0.5 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

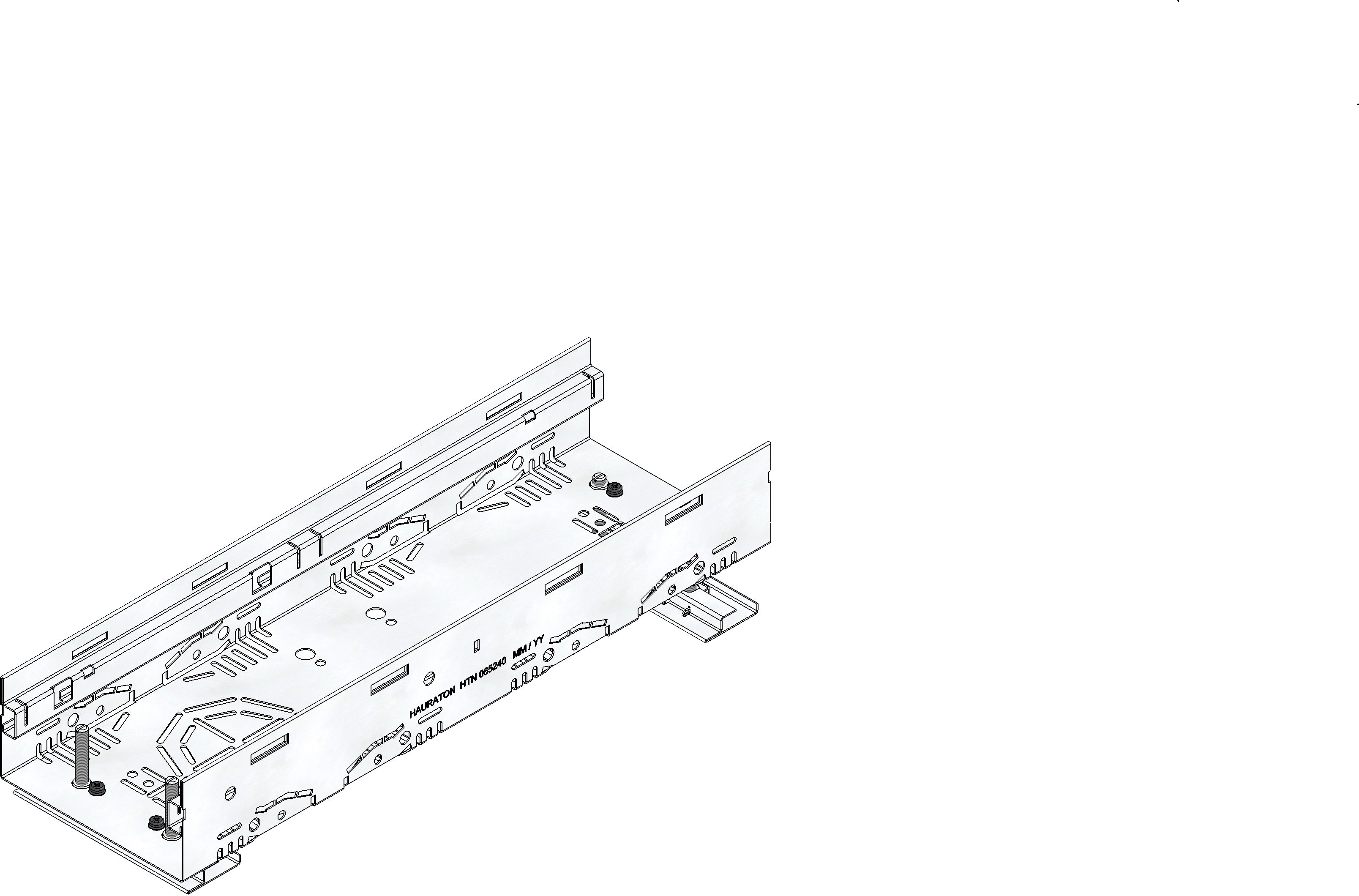

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
65243
Length
500 mm
Width
155 mm
Height
89 - 124 mm
Weight
1.90 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
155
Internal channel cross-section
83 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
DACHFIX STEEL 155 Channel body type 75, height adjustable, stainless steel, height adjustment range 89-124 mm, 0.5 m
Product description
DACHFIX STEEL 155 type 75 - Channel body with adjustable base plate, made of stainless steel CNS 1.4301, pedestrian and wheelchair accessible, cover support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 4-fold connection possibility for cross-intersection, with integrated, optional 2-fold fixing anchor, incl. 2 adjustment sets/half-metre, height adjustability 89-124 mm, LxWxH 500x155x89-124 mm, item no. 65243
Packaging unit
360
