Article No. 65258

DACHFIX STEEL 155, height 100 mm

Type 100, height adjustable, galvanised, 0.5 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

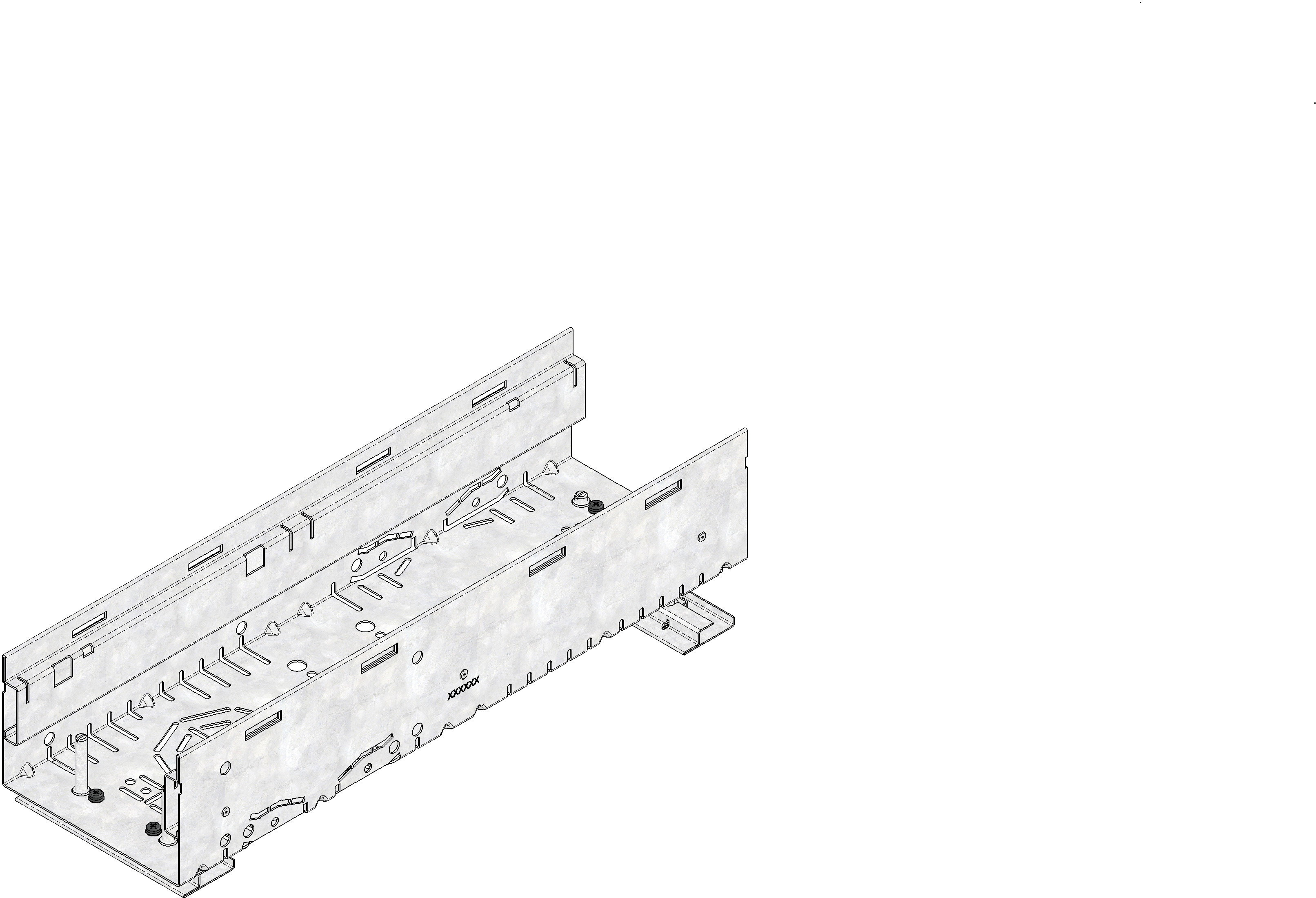

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
65258
Length
500 mm
Width
155 mm
Height
114 - 149 mm
Weight
3.08 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
155
Internal channel cross-section
120 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 155 Channel body type 100, height adjustable, galvanised, height adjustment range 114-149 mm, 0.5 m
Product description
DACHFIX STEEL 155 type 100 - Channel body with adjustable base plate, made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, cover support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 4-fold connection possibility for cross-intersection, with integrated, optional 2-fold fixing anchor, incl. 2 adjustment sets/half-metre, height adjustability 114-149 mm, LxWxH 500x155x114-149 mm, item no. 65258
Packaging unit
360
