Article No. 69067
DACHFIX STEEL 155
FIBRETEC design slotted cover, SW 110/19 mm, in the colour black, screwable from type 75, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

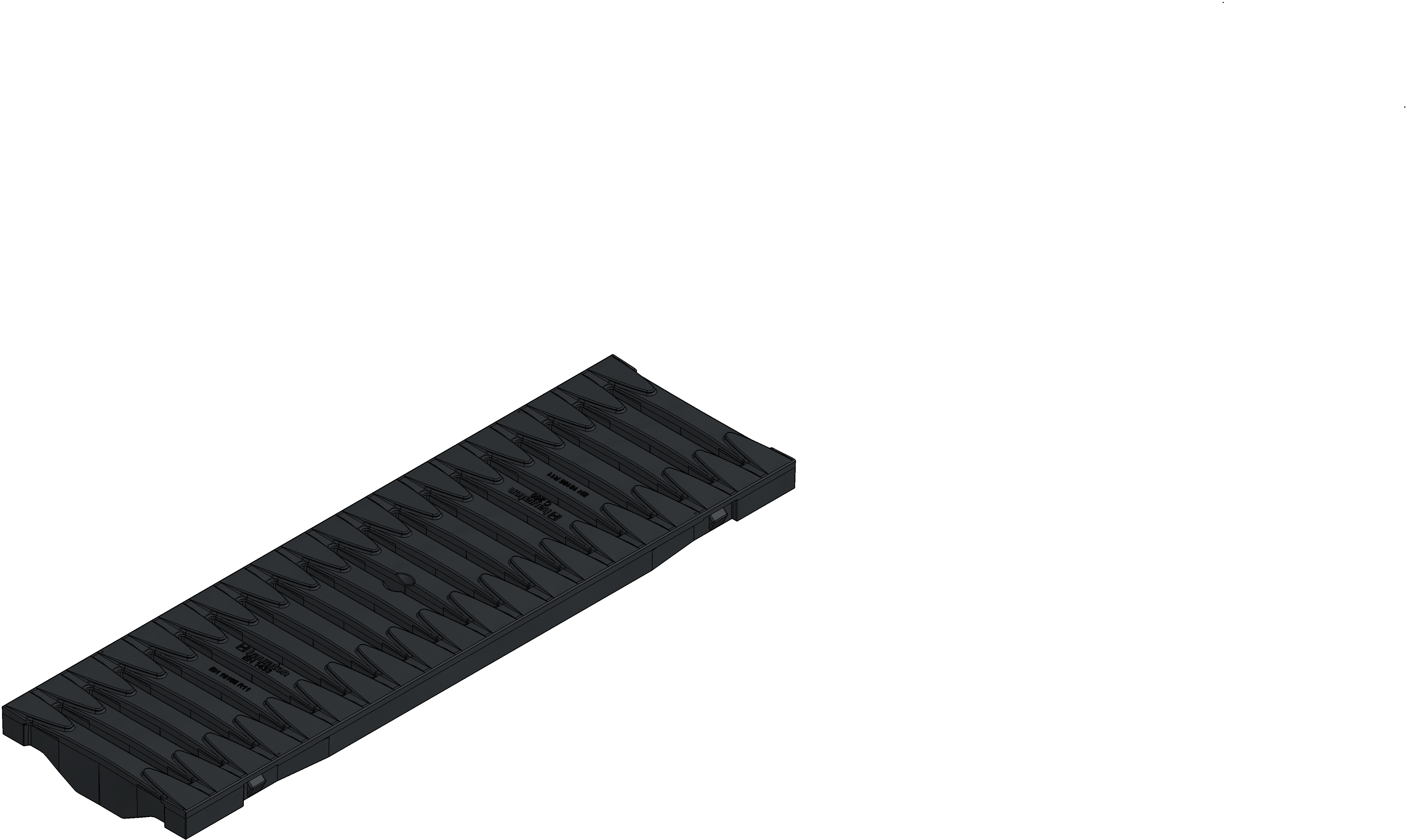

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69067
Length
500 mm
Width
149 mm
Height
38 mm
Einlegetiefe
20 mm
Weight
1.05 kg
Material
reinforced Polyamide
Intake cross-section
372.0 cm²/m
Nominal size
155
Inlet opening
9
Fixing type
Locking handle
Material cover
reinforced Polyamide
Regulations
DIN 51130, AS 4586, EN 16165
Sales text
FIBRETEC Design slotted cover SW 110/10 mm, black, pedestrian and wheelchair-accessible, screwable from type 75, DACHFIX STEEL/ STEELFIX REGULAR 155, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 155 - FIBRETEC design slotted cover SW 110/9 mm, made of fibre-reinforced polyamide, black, pedestrian and wheelchair-accessible, screwable from type 75, installation length 500 mm, item no. 69067
Packaging unit
84
