Article No. 69041
DACHFIX STEEL 135
Perforated cover Ø 6 mm, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

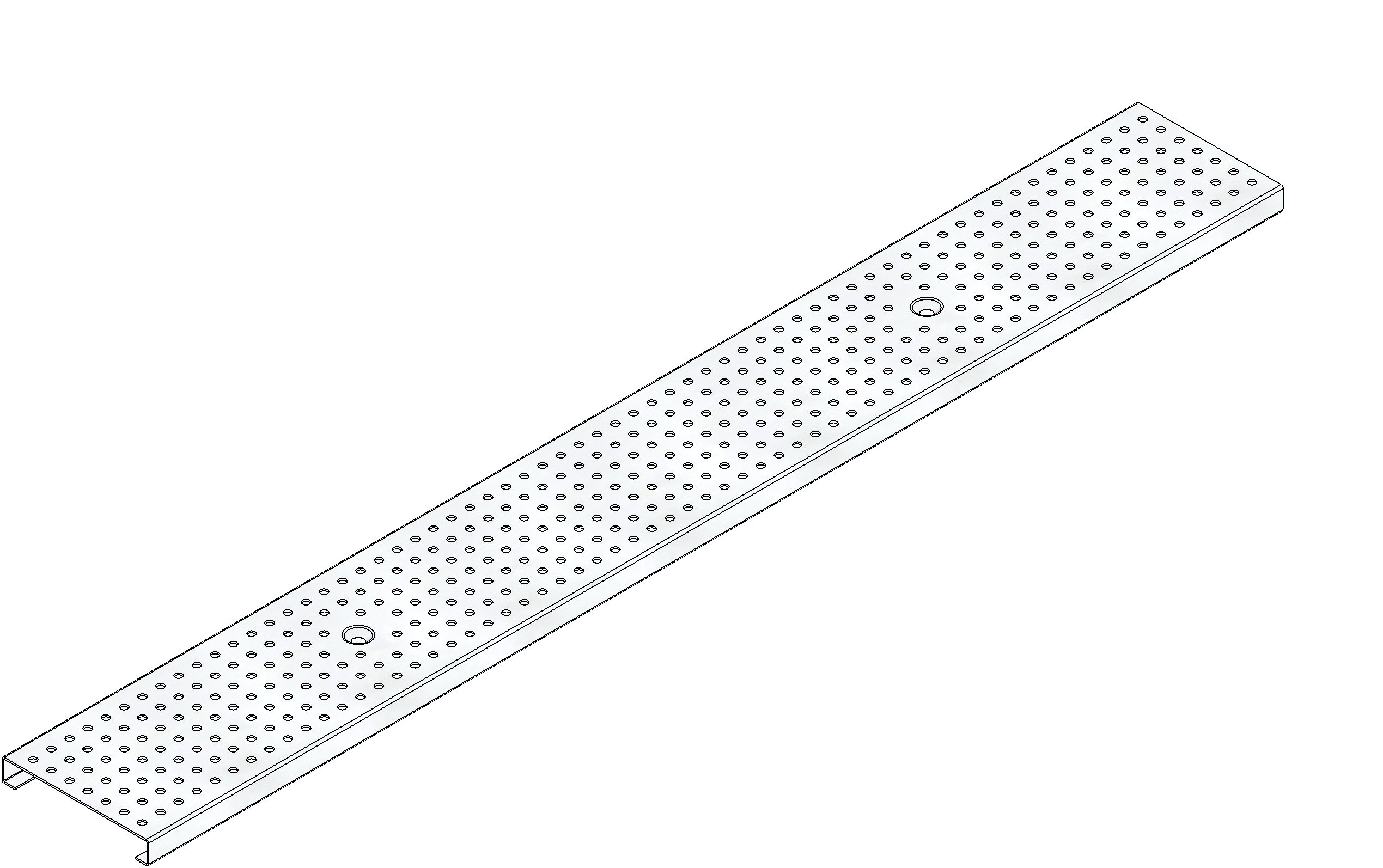

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
69041
Length
1000 mm
Width
129 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
1.94 kg
Material
Stainless steel 1.4301
Intake cross-section
120.0 cm²/m
Nominal size
135
Inlet opening
0
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Sales text
Perforated cover Ø 6 mm, stainless steel, cl. A 15, 2-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 135, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 135 -Perforated cover Ø 6 mm, made of stainless steel CNS 1.4301, load class A 15, 2-fold screwable , installation length 1.000 mm, item no. 69041
Packaging unit
-
