Article No. 44020
DACHFIX RESIST 115
Slotted cover SW 80/9 mm, galvanised, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

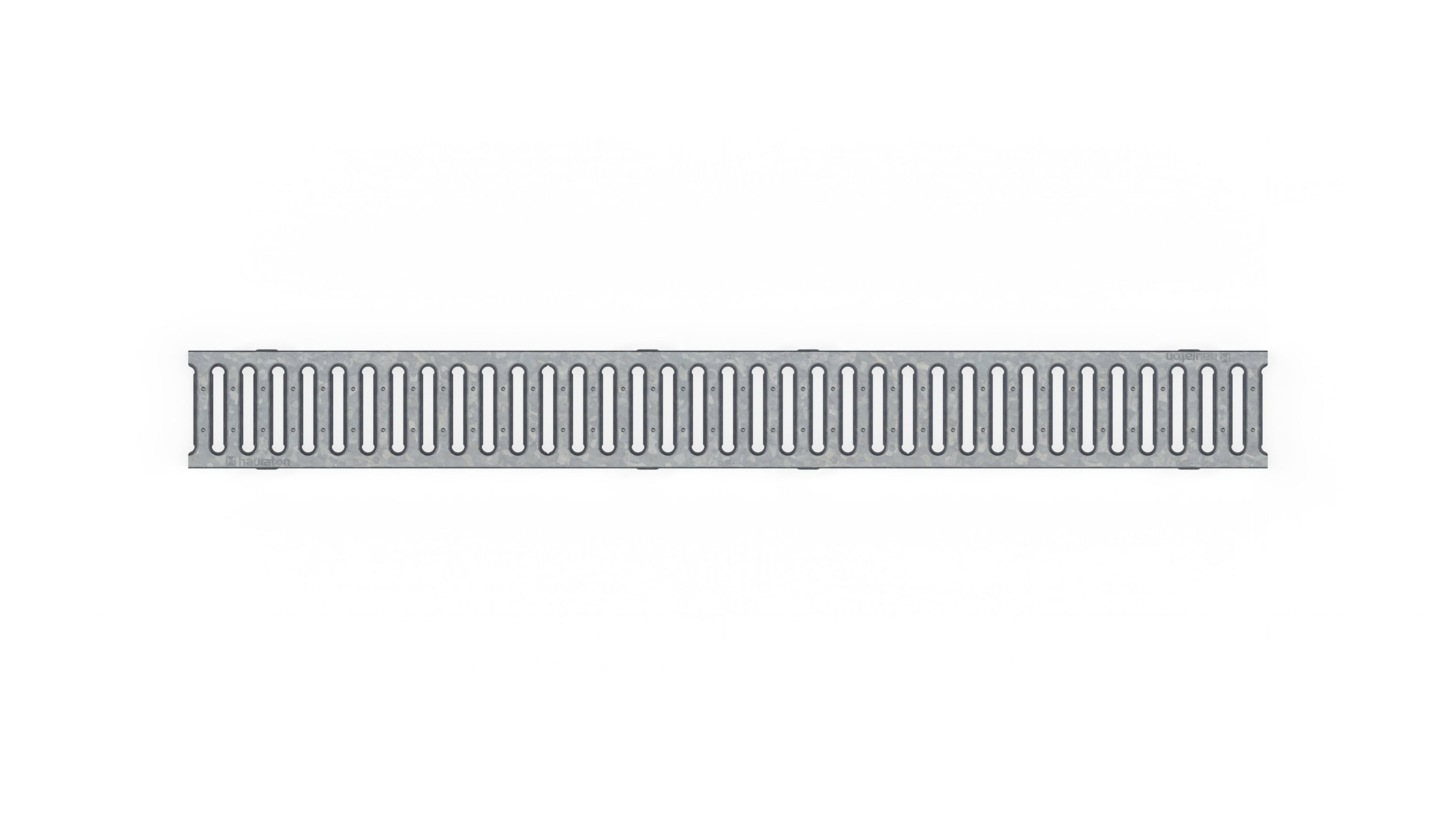

Top view

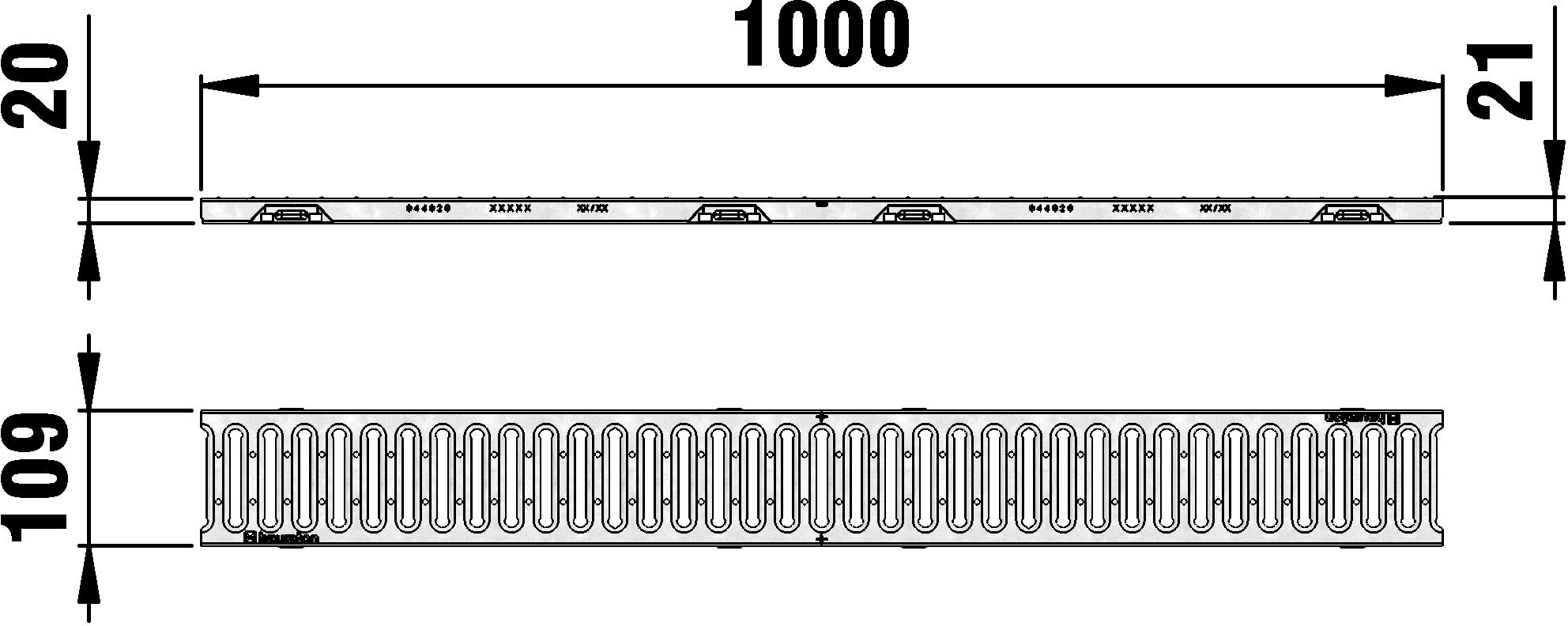

Technical drawing

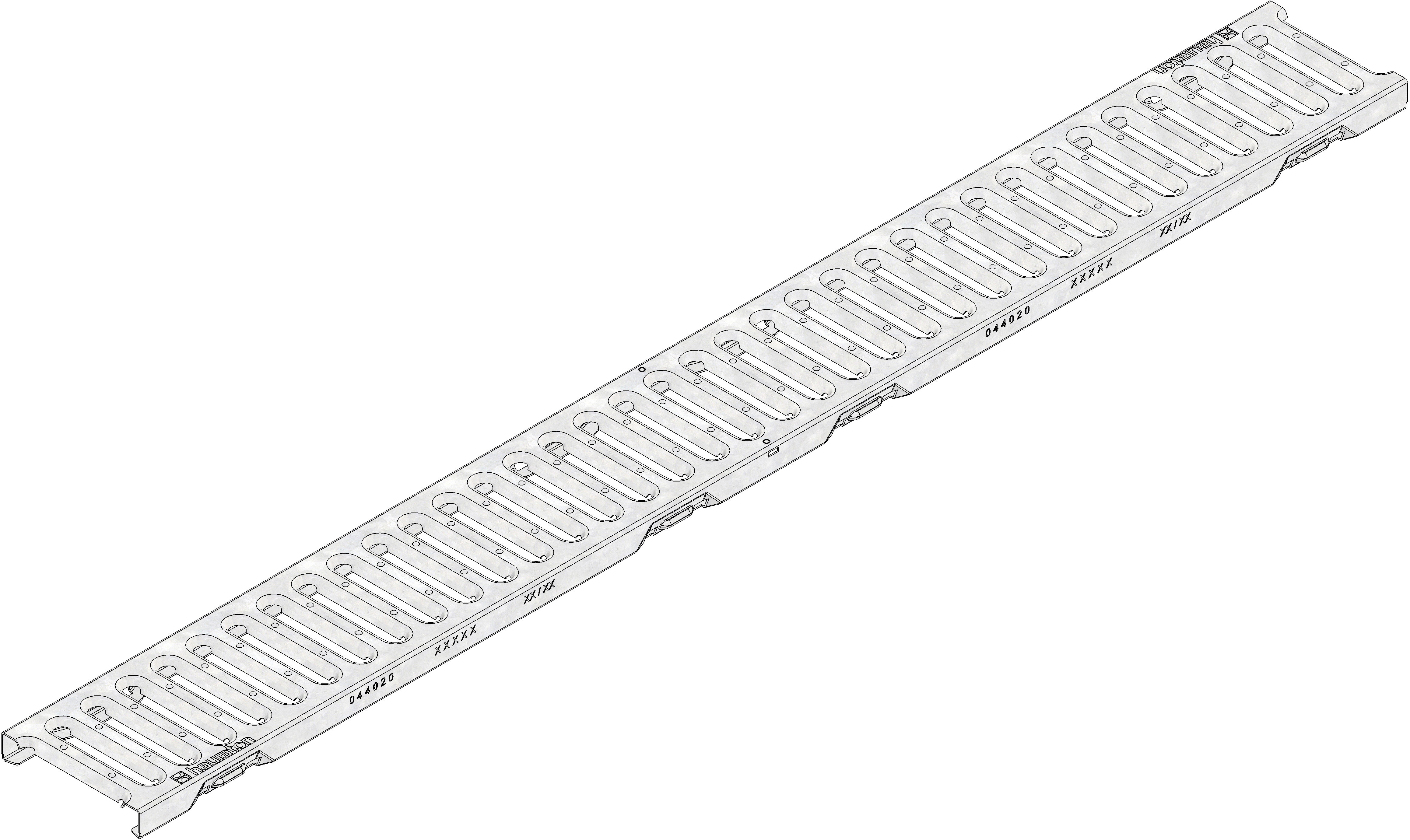

Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
44020
Length
1000 mm
Width
109 mm
Height
21 mm
Einlegetiefe
20 mm
Weight
1.20 kg
Material
strip galvanized steel
Intake cross-section
263.0 cm²/m
Nominal size
90
Inlet opening
9
Fixing type
Loose blatant, Slotted cover
Material cover
strip galvanized steel
Regulations
EN 1433
Sales text
Slotted cover SW 80/9 mm, galvanised, cl. A 15, DACHFIX RESIST/TOP X, 1 m
Product description
DACHFIX RESIST/TOP X - Slotted cover SW 80/9 mm, made of galvanised steel, load class A 15 according to EN 1433, installation length 1000 mm, item no. 44020
Packaging unit
300
