Article No. 32553

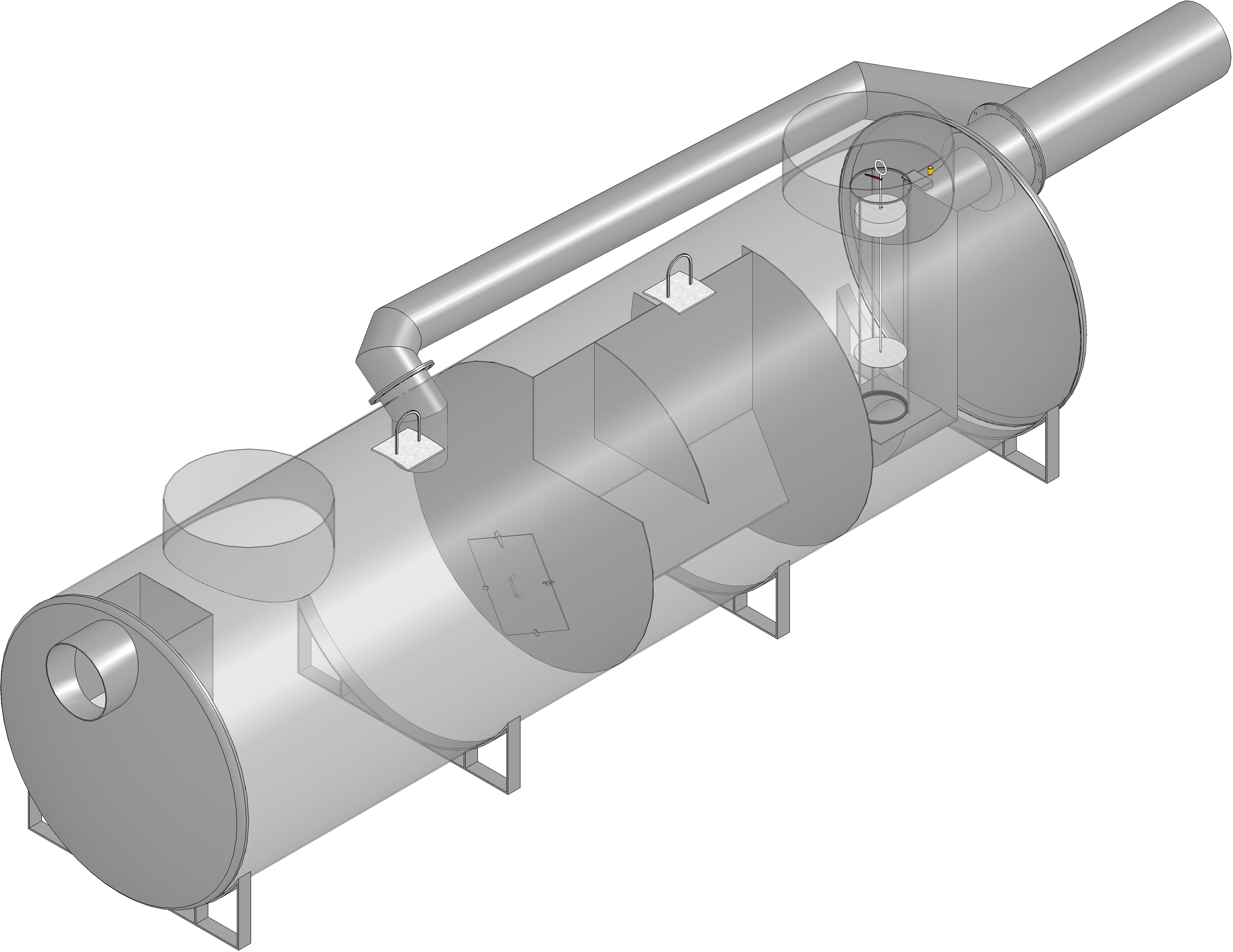

AQUAFIX SKGBP Coalescence separator with sludge trap and bypass

SKGBp P 080

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
32553
Length
9252 mm
Width
2210 mm
External diameter
2000 mm
Height
2312 mm
Weight
3698.00 kg
Material
AQUAFIX Coalescence material, AQUAFIX Steel
Nominal size
80.00 l/s
Bypass
single bypass
Durchflussleistung
400.0 l/s
Sludge trap capacity
8600 l
Separator capacity
9030 l
DN in-/outlet
500 mm
HE H inlet
1450 mm
HA height outlet
1400 mm
DNE Manhole 1
1000 mm
Regulations
EN 858
Sales text
AQUAFIX Sludge Trap Coalescence Separator with Bypass SKGBp P 080
Product description
AQUAFIX Sludge Trap Coalescence Separator with Bypass SKGBp P 080, item no. 32553
Packaging unit
-
