Article No. 32551

AQUAFIX SKGBP Coalescence separator with sludge trap and bypass

SKGBp P 070

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

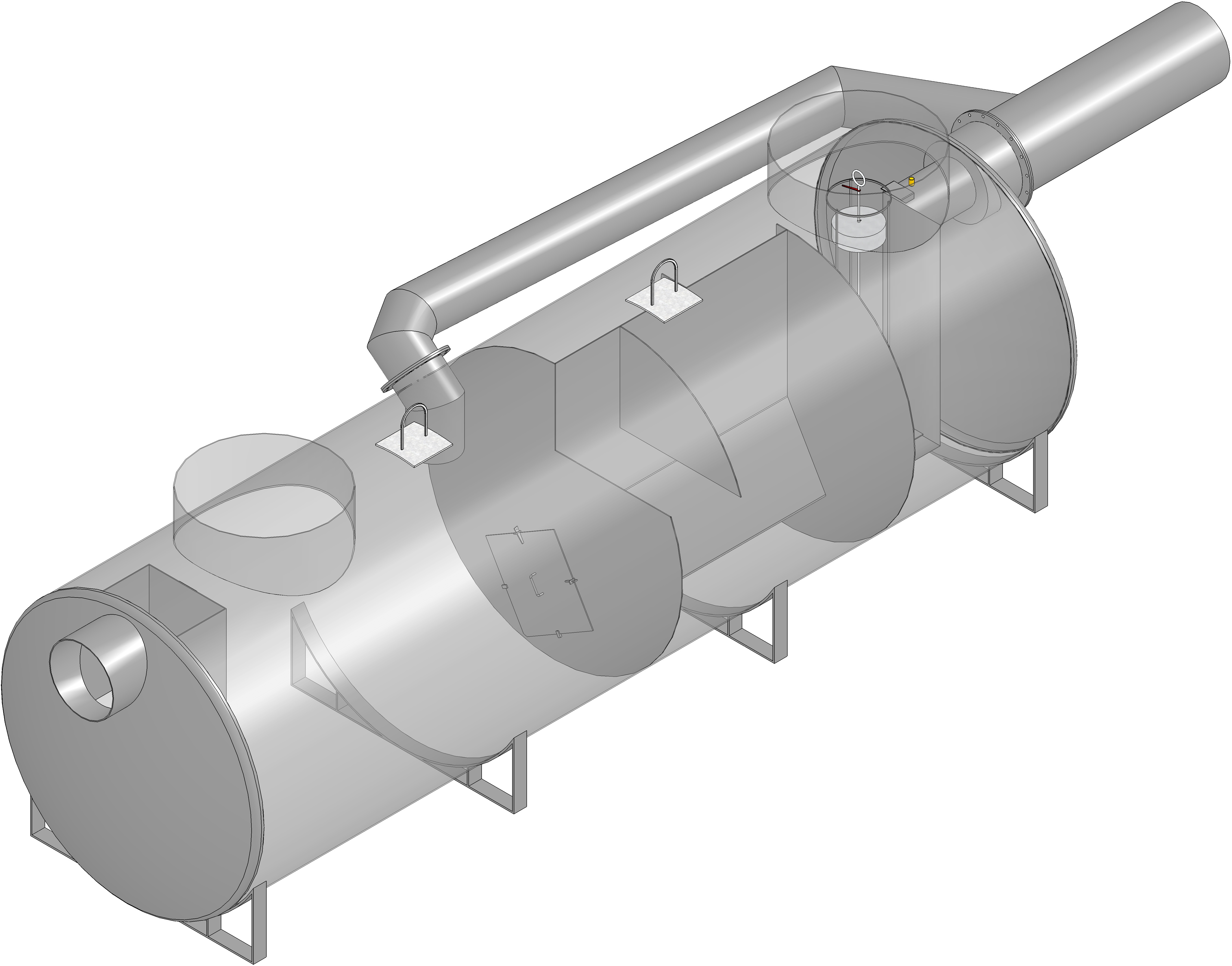

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
32551
Length
8672 mm
Width
2210 mm
External diameter
2000 mm
Height
2312 mm
Weight
3503.00 kg
Material
AQUAFIX Coalescence material, AQUAFIX Steel
Nominal size
70.00 l/s
Bypass
single bypass
Durchflussleistung
350.0 l/s
Sludge trap capacity
8390 l
Separator capacity
7810 l
DN in-/outlet
500 mm
HE H inlet
1450 mm
HA height outlet
1400 mm
DNE Manhole 1
1000 mm
Regulations
EN 858
Sales text
AQUAFIX Sludge Trap Coalescence Separator with Bypass SKGBp P 070
Product description
AQUAFIX Sludge Trap Coalescence Separator with Bypass SKGBp P 070, item no. 32551
Packaging unit
-
