Article No. 32543

AQUAFIX SKGBP Coalescence separator with sludge trap and bypass

SKGBp P 030

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

Product image

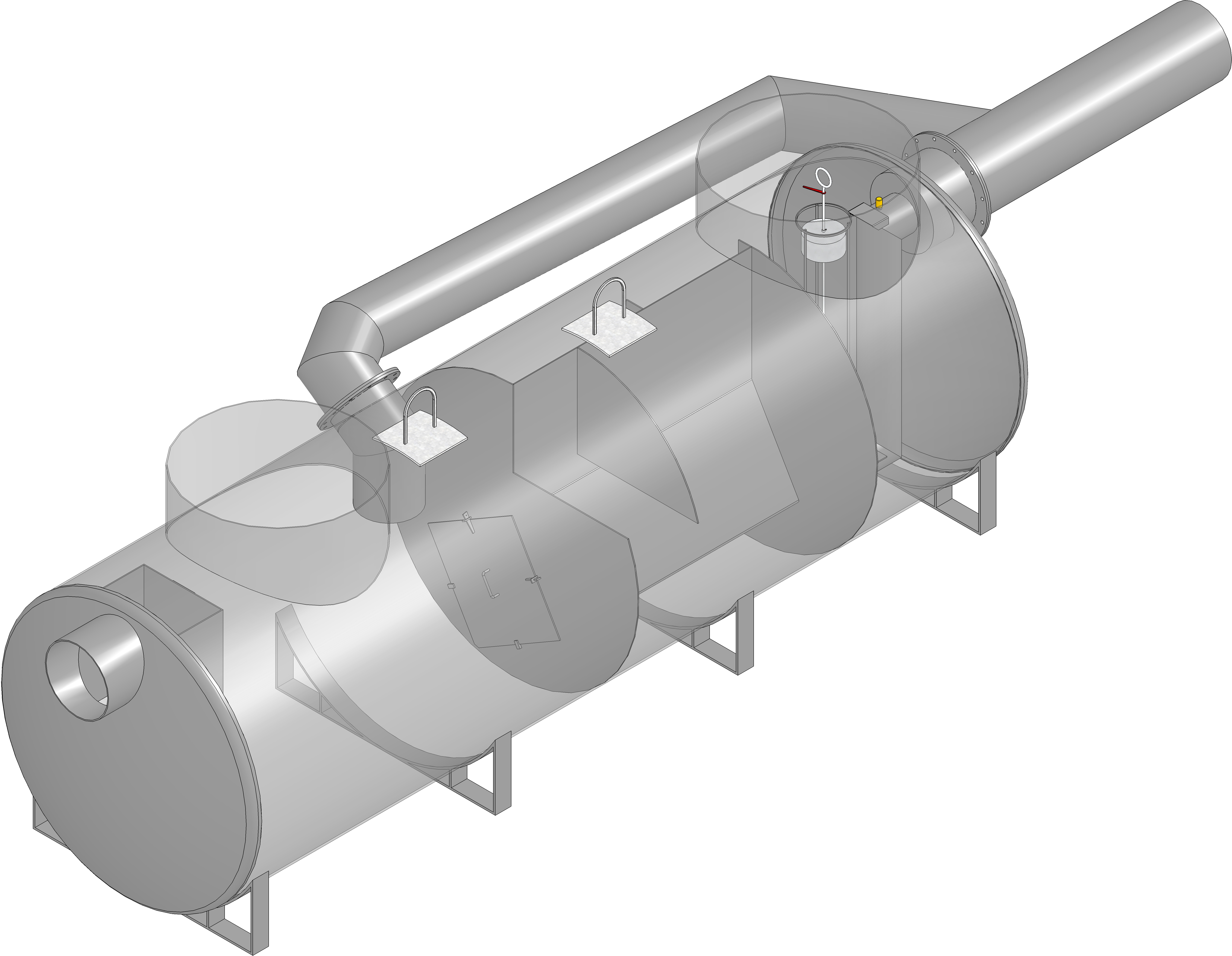

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
32543
Length
7082 mm
Width
1910 mm
External diameter
1600 mm
Height
1912 mm
Weight
2127.00 kg
Material
AQUAFIX Coalescence material, AQUAFIX Steel
Nominal size
30.00 l/s
Bypass
single bypass
Durchflussleistung
150.0 l/s
Sludge trap capacity
3960 l
Separator capacity
4020 l
DN in-/outlet
400 mm
HE H inlet
1150 mm
HA height outlet
1100 mm
DNE Manhole 1
1000 mm
Regulations
EN 858
Sales text
AQUAFIX Sludge Trap Coalescence Separator with Bypass SKGBp P 030
Product description
AQUAFIX Sludge Trap Coalescence Separator with Bypass SKGBp P 030, item no. 32543
Packaging unit
-
