Article No. 32585
AQUAFIX SKG2BP Coalescence separator with sludge trap and bypass with increased performance
SKG2Bp P 040
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

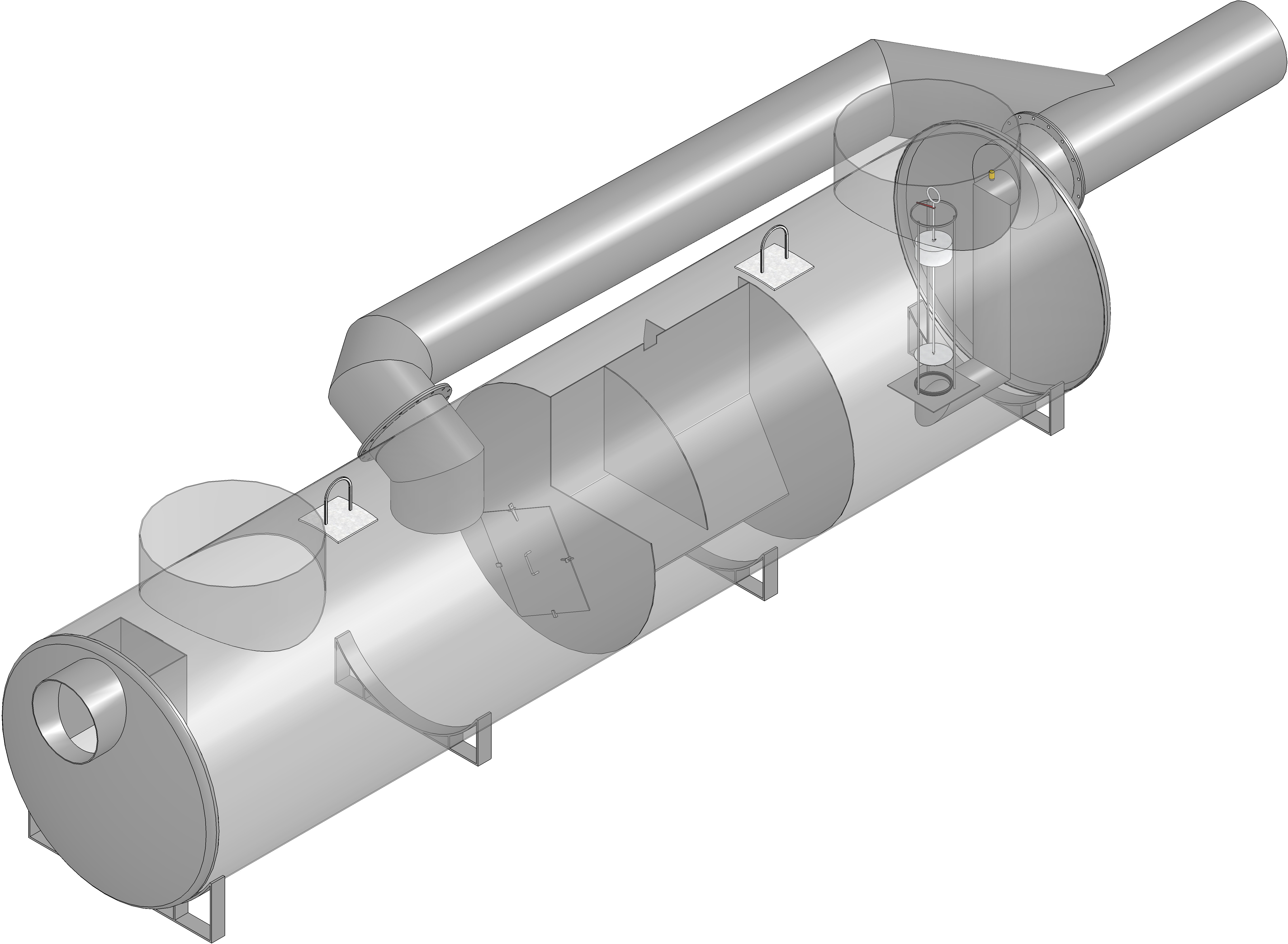

Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
32585
Length
8994 mm
Width
2174 mm
External diameter
1600 mm
Height
1912 mm
Weight
2647.00 kg
Material
AQUAFIX Coalescence material, AQUAFIX Steel
Nominal size
40.00 l/s
Bypass
double bypass
Durchflussleistung
400.0 l/s
Sludge trap capacity
4860 l
Separator capacity
4760 l
DN in-/outlet
500 mm
HE H inlet
1050 mm
HA height outlet
1000 mm
DNE Manhole 1
1000 mm
Regulations
EN 858
Sales text
AQUAFIX Large separator with sludge trap and double Bypass SKG2Bp P 040
Product description
AQUAFIX Large separator with sludge trap and double Bypass SKG2Bp P 040, item no. 32585
Packaging unit
-
